Wuxi Jiunai Polyurethane Products Co., Ltd
บ้าน ผลิตภัณฑ์สายพานโพลียูรีเทน

สีเขียวแรงดึงสูงและความต้านทานการฉีกขาดต่อน้ำมันเชื้อเพลิงสายพานโพลียูรีเทนกลมสำหรับอุตสาหกรรม

ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

สนทนาออนไลน์ตอนนี้ฉัน

สีเขียวแรงดึงสูงและความต้านทานการฉีกขาดต่อน้ำมันเชื้อเพลิงสายพานโพลียูรีเทนกลมสำหรับอุตสาหกรรม

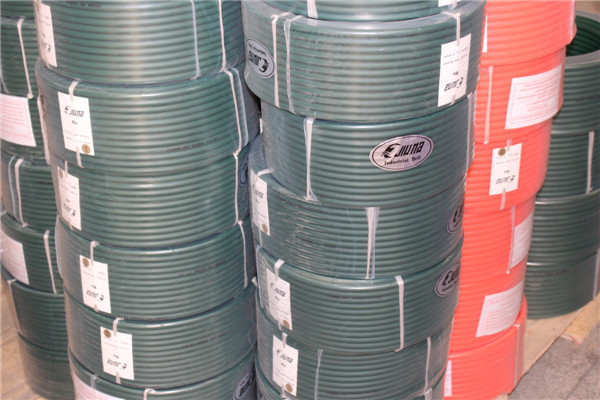

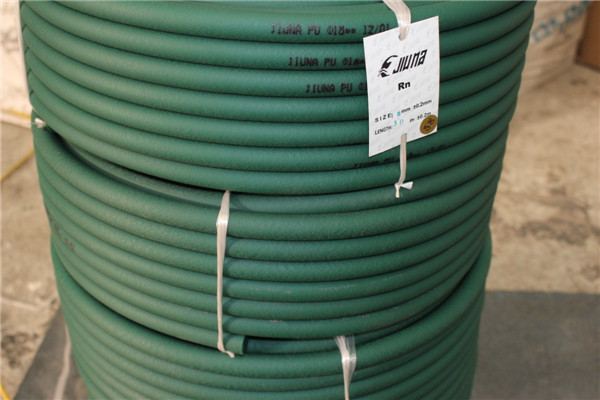

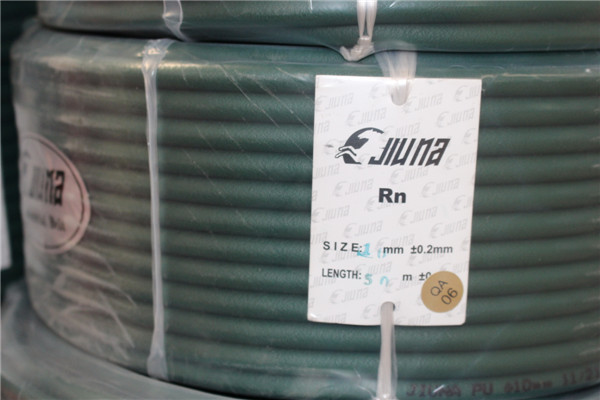

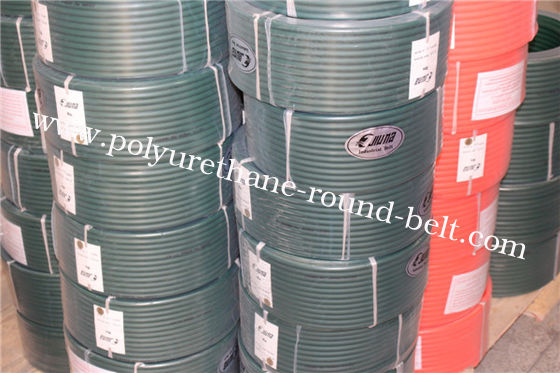

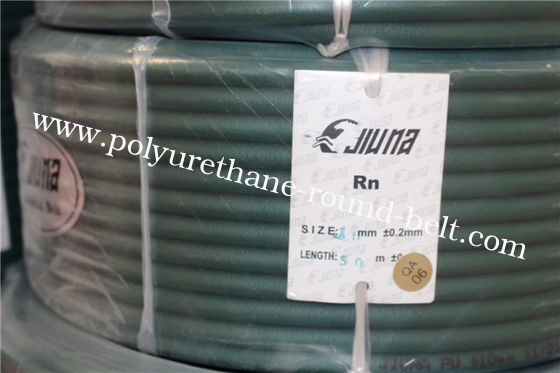

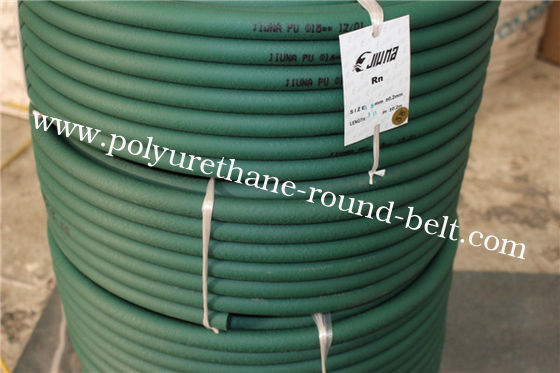

Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial
Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial

ภาพใหญ่ :  สีเขียวแรงดึงสูงและความต้านทานการฉีกขาดต่อน้ำมันเชื้อเพลิงสายพานโพลียูรีเทนกลมสำหรับอุตสาหกรรม

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 5mm~15mm
การชำระเงิน:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
รายละเอียดสินค้า
สี: สีเขียวหรือตามที่คุณต้องการ วัสดุ: PU
ยาว: 300 ม./ม้วน 200 ม./ม้วน 100 ม./ม้วน ความแข็ง: 85A-90A
อัตราแรงดึง: 0.3 กก.-31.3 กก. อัตราการยืดตัว: 1.5%-3%
แสงสูง:

สายพานปูรอบ

,

สายพานปูอัด

,

สายพานโพลียูรีเทนอุตสาหกรรม



PU Cord Belt Application :

(1)   Newspaper conveying,
(2)    Packing machines,
(3)    Ceramic and stoneware processing plants,
(4)   Floor and roof tiles conveying,
(5)   Wood Working machineries,
 (6)   Textile machines,
 (7)    Paper industry machines,
 (8)   Food grading machines, other food processing machines.





Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2 0.79 20  1.5-3% 0.3 0.7 90 400
3 0.98 25   1.5-3% 0.7 1.6 90 400
4 1.38 35   1.5-3% 1.2 2.7 85 200
5 1.57 40   1.5-3% 2.0 4.3 85 100
6 1.97 50   1.5-3% 3.2 7.0 85 100
7 2.17 55   1.5-3% 4.1 9.0 85 100
8 2.56 65   1.5-3% 5.0 11.0 85 100
9 2.95 75   1.5-3% 6.8 15.0 85 50
10 2.95 75   1.5-3% 7.7 17.0 85 50
              30
15 4.72 120 mm 1.5-3% 17.7 39.0 85 30
18 5.71 145 mm 1.5-3% 25.4 56.0 85 30
20 6.30 160 mm 1.5-3% 31.3 69.0 85

30





สีเขียวแรงดึงสูงและความต้านทานการฉีกขาดต่อน้ำมันเชื้อเพลิงสายพานโพลียูรีเทนกลมสำหรับอุตสาหกรรม 0สีเขียวแรงดึงสูงและความต้านทานการฉีกขาดต่อน้ำมันเชื้อเพลิงสายพานโพลียูรีเทนกลมสำหรับอุตสาหกรรม 1สีเขียวแรงดึงสูงและความต้านทานการฉีกขาดต่อน้ำมันเชื้อเพลิงสายพานโพลียูรีเทนกลมสำหรับอุตสาหกรรม 2
