Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface

ผลิตภัณฑ์ที่ดีที่สุด
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

สนทนาออนไลน์ตอนนี้ฉัน

Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface

Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface
Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface

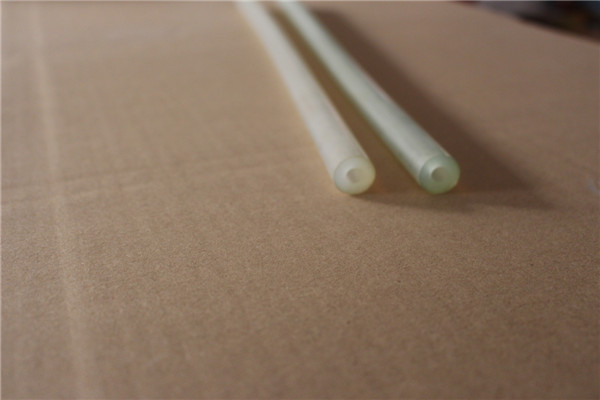

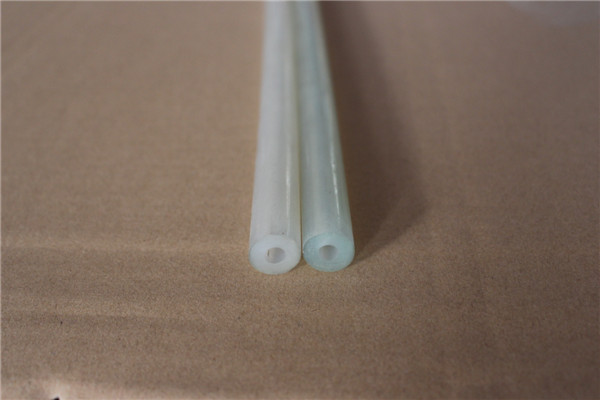

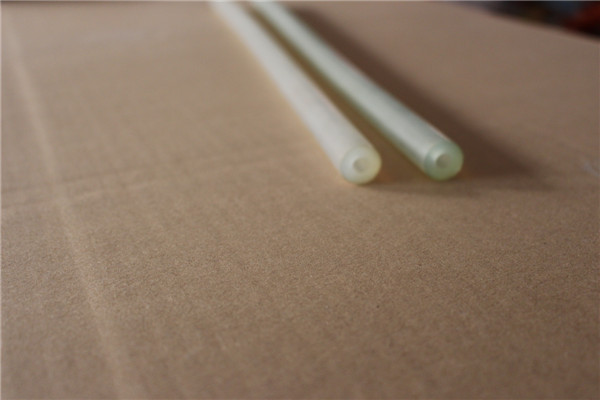

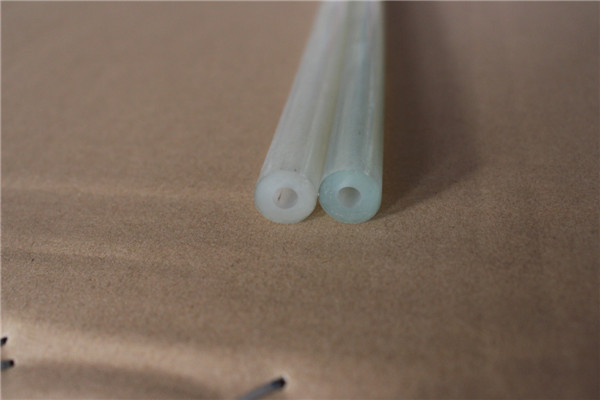

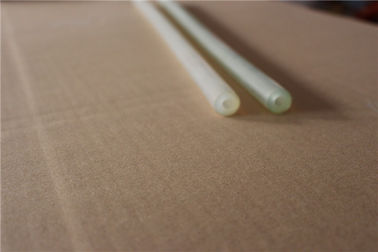

ภาพใหญ่ :  Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: Jiuna
ได้รับการรับรอง: ROHS
Model Number: According to your requirement custom

การชำระเงิน:

Minimum Order Quantity: 500 piece
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 15 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96000 meters per Month
รายละเอียดสินค้า
Thickness: customized Relative density: 2.14~2.20
Operatingtemperature: -80~260 Arc resistance:: >300
Hardness: 45~98 shore A type: Non-standard Injection Molding Tube
Length: 30~50CM
แสงสูง:

polyurethane pneumatic tube

,

pu air tubing

Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface







PU tubing Properties:



 Hardness range from 45 shore A to 98 shore A ,

 Can absorb shock and reduce the pipe friction.

Wide range of working temperature and pressure.

  resistance to chemicals,water ,fuel, oil, fungus.

PU tubing Usage:

Industrial Pneumatic tools, Processing control with potential

Gas pipeline, Auto assembly line, Instrument & equipment, Laboratory,

 Lube Transmission line, Robotics, Non-corrosive chemical transmission system, Water transmission & gardening   .

 Water and other fluid and non-corrosive oil.

Accessories(such as handle)

Metal and electronic products protective coat.





PART NO.

O.D./ I.D. (mm)

BURST PRESSURE (kg./cm2)

WORKING PRESSURE (kg./cm2)

BENDING RADIUS (mm)

STANDARD LENGTH (m)

PUT-01

4 x 2 mm

30

10

10

100

PUT-02

6 x 4 mm

30

10

16

100

PUT-03

8 x 5 mm

30

10

22

100

PUT-04

8 x 5.5 mm

30

10

21

100

PUT-05

8 x 6 mm

30

10

20

100

PUT-06

10 x 6.5 mm

30

10

23

100

PUT-07

10X7mm

             30

10

25

100

PUT-08

12 x 8 mm

             30

10

35

100

PUT-09

12 x 9 mm

             30

10

40

100

PUT-10

12 x 10 mm

             30

10

45

100



Products Introduction:

polyurethane tubing is resistant to chemicals, water, fuel, oil and fungus. Any Non-standard Industrial Injection Molding tube can be according to your drawing to costom.



Service commitment:

We have been adhering to the business philosophy of “Quality for keeping going ,Credit to win the world” committing itself to providing extensive customers with quality services ,we still can Provide Technical Product support for customers. Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface 0Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface 1

Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface 2
