Orange color hardness 90A Smooth Polyurethane Round Belt For Industrial Transmission

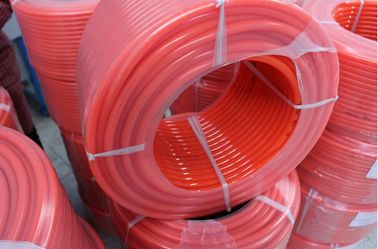

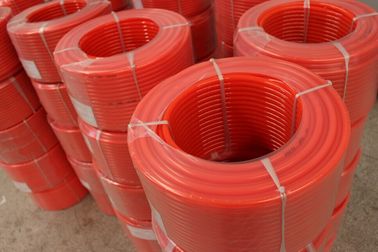

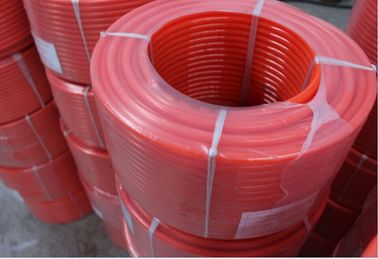

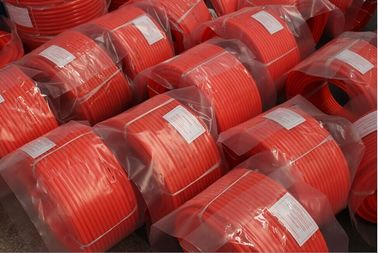

Orange color  hardness 90A Smooth  Polyurethane Round Belt  For Industrial Transmission
Orange color  hardness 90A Smooth  Polyurethane Round Belt  For Industrial Transmission Orange color  hardness 90A Smooth  Polyurethane Round Belt  For Industrial Transmission Orange color  hardness 90A Smooth  Polyurethane Round Belt  For Industrial Transmission Orange color  hardness 90A Smooth  Polyurethane Round Belt  For Industrial Transmission

ภาพใหญ่ :  Orange color hardness 90A Smooth Polyurethane Round Belt For Industrial Transmission

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 3mm~20mm

การชำระเงิน:

Minimum Order Quantity: 5 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
รายละเอียดสินค้า
color: red material: PU
longth: 300m/roll 200m/roll 100m/roll 50m/roll 30m/roll hardness: 85A-90A
tensile rate: 0.3kg-31.3kg stretching rate: 1.5%-3%
แสงสูง:

pu extruded belt

,

green round belt

Tensile Strength Polyurethane Round Belt / PU Round Belt for lndustrial

PU rough Round Belt(smooth/rough)



(1)Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane

(2)Reinforced by Polyester Cord or Steel Cord

(3)Temperature range -35℃ - 80℃

(4)Shore A hardness range 80A - 98A

(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

(6) Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.



Wuxi jiunai  polyurethane products co.,LTD is located in wuxi city shitang bay mountain luoshe town industrial park, near to 312 national road, trafifc is very convenient . Company has the international leading level of polyurethane products production  line, the introduction of international  advanced technology and testing, testing equipment. In the production scale ,production process, techncal strength in the same industry leading position . Ls a research and development, the production of polyurethane series products of leading domestic, top professional manufacturers,with strong teachnology research and development and production capacity.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30





Orange color  hardness 90A Smooth  Polyurethane Round Belt  For Industrial Transmission 0Orange color  hardness 90A Smooth  Polyurethane Round Belt  For Industrial Transmission 1
