Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface

ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

สนทนาออนไลน์ตอนนี้ฉัน

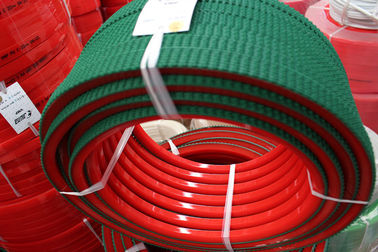

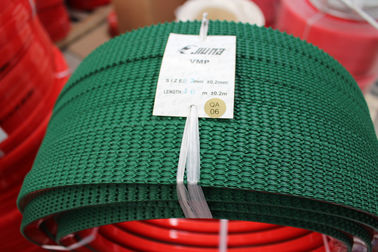

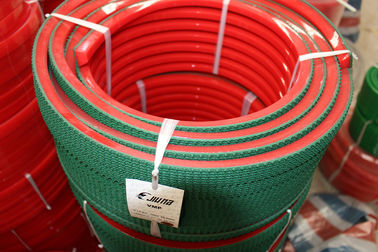

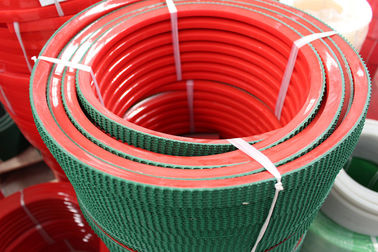

Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface

Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface
Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface

ภาพใหญ่ :  Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: Jiuna
ได้รับการรับรอง: ROHS
Model Number: A-13 / B-17 / C-22
การชำระเงิน:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 96.000 meters per Month
Export port: shanghai
Factory: Wuxi City
รายละเอียดสินค้า
Hardness: 85A-90A Tensile: 55Mpa
Material: PU type: Corrugated Belt
color: red belt top green surface length: 30m/roll
แสงสูง:

pu round belt

,

pu extruded belt



Anti - skipping  Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface



Super grip Belt Feature :

  • Profile shape: Vee
  • Profile size: A/13, B/17, C/22
  • Reinforcement: None
  • Color: Green, Red
  • Compliancy: RoHS
  • Durometer: 80A, 90A
  • Material: Polyurethane, PVC Top Surface
  • Special Feature: PVC Grip Top Surface
  • Package Length: 30meter /roll
  • Easily welded endless vee belt .



 Vee-Belt Application :

1.  Widely used in conveying slippery environments,

2.  up steep inclines conveying industrial .

Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface 0

Specification

X(mm)

H(mm)

Z(mm)

M/rolls

reinforced

arabesquitic

A

13

8

3.5

30

·

·

B

17

11

3.5

30

·

·

C

22

14

3.5

30

·

·

D

32

19

3.5

30

·

·

M

8

4



50





Z

10

5

3.5

50

·

·



Products introduction:



Super grip belt are ideally suited for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.

PU Vee Super Grip with top PVC surface is soft and tacky enough that it won’t damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely compliant pattern .

Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface.





Service commitment:

 “Quality for keeping going ,Credit to win the world”

Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface 1Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface 2
