OEM Reinforced polyester Kevlar Belts round With anti-abrasion

OEM Reinforced polyester Kevlar Belts round With anti-abrasion
OEM Reinforced polyester Kevlar Belts round With anti-abrasion OEM Reinforced polyester Kevlar Belts round With anti-abrasion OEM Reinforced polyester Kevlar Belts round With anti-abrasion OEM Reinforced polyester Kevlar Belts round With anti-abrasion

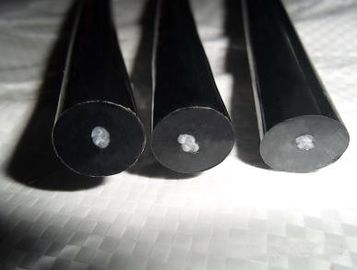

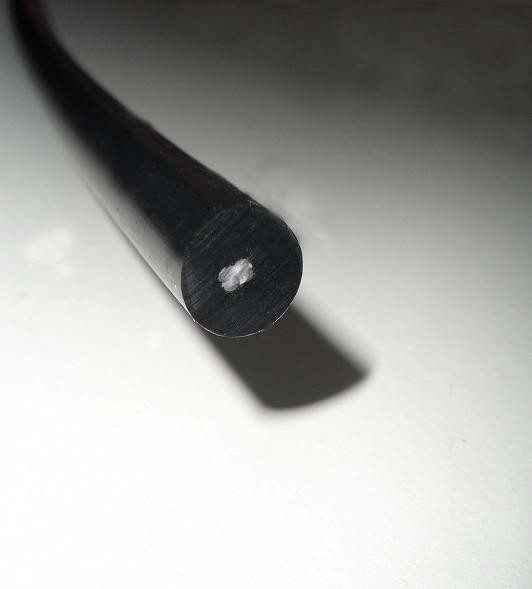

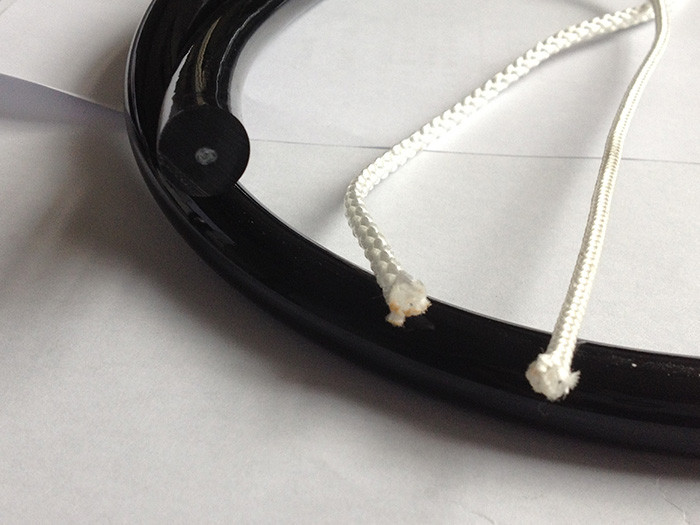

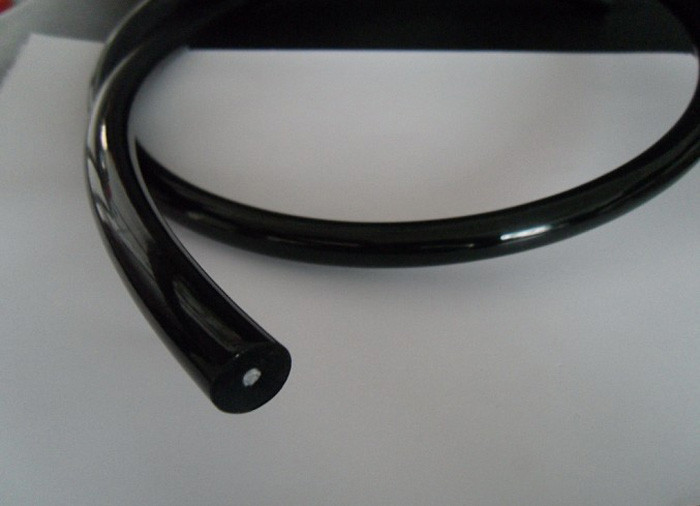

ภาพใหญ่ :  OEM Reinforced polyester Kevlar Belts round With anti-abrasion

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: Jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 12mm
Hardness: 85 shore A
Color: black
Length: 100meter/roll
การชำระเงิน:
Minimum Order Quantity: 1200 Meter
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
export port: shanghai
Factory: Wuxi City
รายละเอียดสินค้า
แสงสูง:

Reinforced cord belt

,

polyurethane flat belt

OEM Reinforced polyester Kevlar Belts round With anti-abrasion





kevlar belt Feature :

1.        Available in round or V-sections,

2.        Low Stretch,anti-abrasion,

3.        Can be cogged for increased flexibility,

4.        Easily made endless with a Drive welding Kit .



Reinforced polyurethane Elevator Belting Application :

1       Any applications where non-reinforced round or V sections of polyurethane belting are stretching due to excess

          loads or center distances,

2.     Medium- to heavy-duty applications,

3.     Conveying or diverging applications, i.e. product sizing,

4.     For conveying wood, laminate, roof and ceiling tile.

5.     help anchor device or Elevator pulley .



Item φ

least radius of gyration



stretch rate

Maximum tensile rate



Hardness

length of rolled

DIA

(mm)

In

mm

Stretching rate

Kg

Lbs

Hardness

(A)

Roll

(m)

5mm

1.57

40

1.5-3%

2.0

4.3

85

100

6mm

1.97

50

1.5-3%

3.2

7.0

85

100

7mm

2.17

55

1.5-3%

4.1

9.0

85

100

8mm

2.56

65

1.5-3%

5.0

11.0

85

100

9mm

2.95

75

1.5-3%

6.8

15.0

85

50

10mm

2.95

75

1.5-3%

7.7

17.0

85

50

12mm

3.94

100

1.5-3%

12.2

27.0

85

30



Products introduction :

Eagle Reinforced Polyurethane Belting is 85A , 90A or 95A  ,98A  ,with reinforced  polyurethane belt or tape for additional strength and reduced stretch, making it the ideal choice for heavy-duty conveying applications where loads cause non-reinforced belts to elongate and slip. Maybe require larger pulley diameter and the addition of take-ups to the drive system. auch as help anchor device or Elevator pulley , Excellent resistance can be to a wide range of industrial chemicals and solvents.
