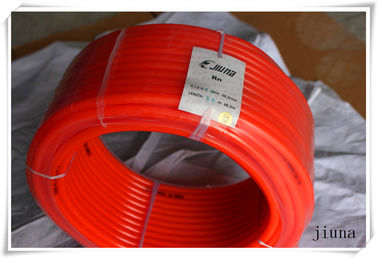

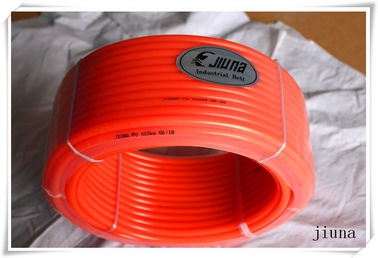

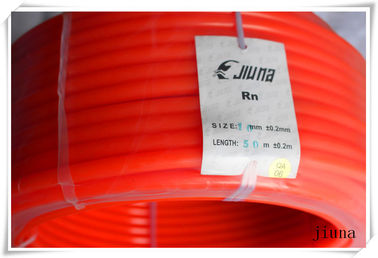

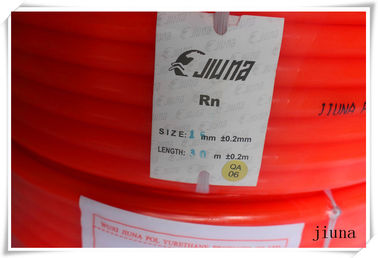

50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange

ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

สนทนาออนไลน์ตอนนี้ฉัน

50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange

50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange
50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange 50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange 50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange 50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange

ภาพใหญ่ :  50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange

รายละเอียดสินค้า:
Place of Origin: china
ชื่อแบรนด์: jiuna
ได้รับการรับรอง: ROHS
Model Number: diameter3-20m
การชำระเงิน:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000,00 as per month
รายละเอียดสินค้า
color: orange hardness: 85A-90A
longth: 400/roll 200m/roll export port: shanghai of china
type: PU rough round belt surface: smooth
Test Method: DIN standard
แสงสูง:

pu extruded belt

,

green round belt

50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed.
(2)Reinforced by Polyester Cord or Steel Cord.
(3)Temperature range -35 celsius degree - 80celsius degree.
(4)Shore A hardness range 80A - 98A.
(5)With excellent resistance to flex, abrasion resistance,

easy jointed and Other characteristics. Widely used in textile,
packaging, printing, machinery, electronic, glass, chemicals, ceramics
 and other industries, especially in the ceramic industry, widely used in the facilities line
the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



50m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange 050m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange 150m Per Roll Round Pu Extruded Belt Diameter 10 Mm - 16 Mm Orange 2

Service commitment:

“ Quality for keeping going ,Credit to win the world”
