Good Weatherability Polyurethane Belting Diameter 3mm - 20mm

ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

สนทนาออนไลน์ตอนนี้ฉัน

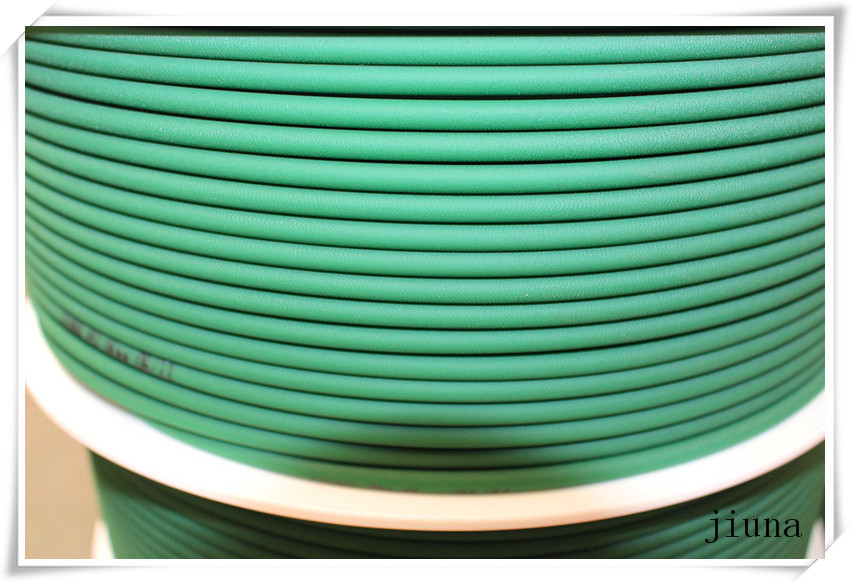

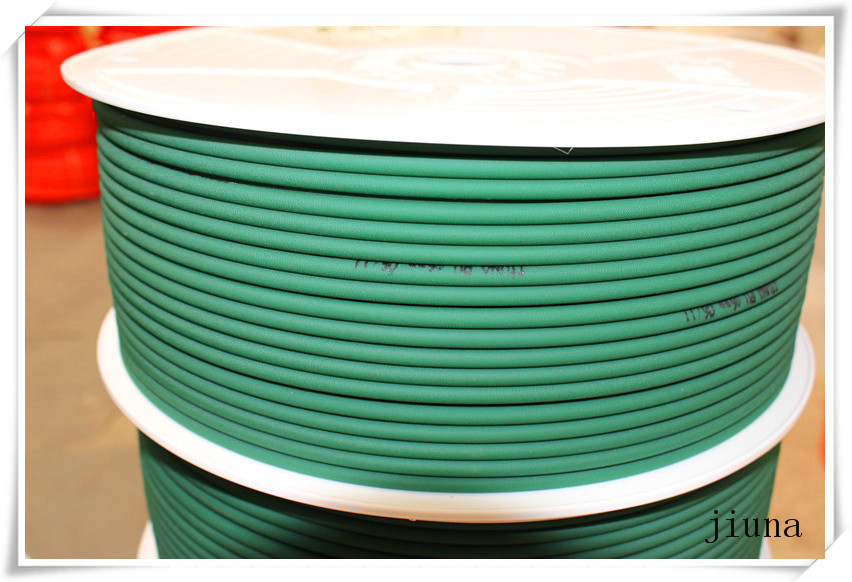

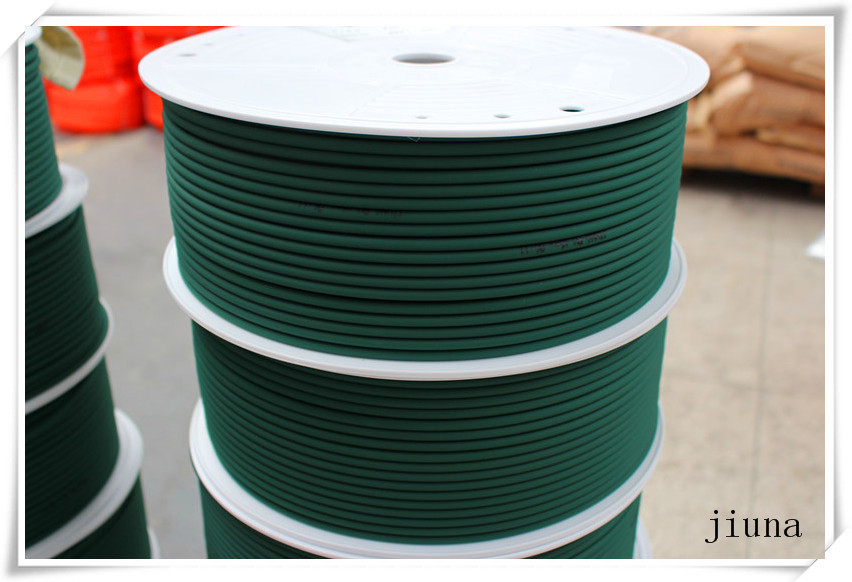

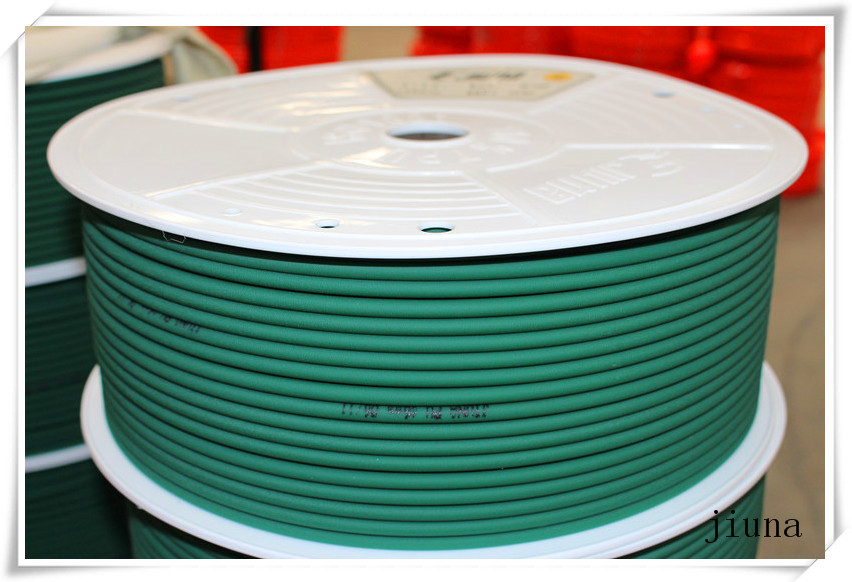

Good Weatherability Polyurethane Belting Diameter 3mm - 20mm

Good Weatherability Polyurethane Belting Diameter 3mm - 20mm
Good Weatherability Polyurethane Belting Diameter 3mm - 20mm Good Weatherability Polyurethane Belting Diameter 3mm - 20mm Good Weatherability Polyurethane Belting Diameter 3mm - 20mm Good Weatherability Polyurethane Belting Diameter 3mm - 20mm

ภาพใหญ่ :  Good Weatherability Polyurethane Belting Diameter 3mm - 20mm

รายละเอียดสินค้า:
Place of Origin: china
ชื่อแบรนด์: jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 2mm-20mm
การชำระเงิน:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
รายละเอียดสินค้า
ความแข็ง: 85A สี: เขียว
ทนความร้อน: -30℃~80℃ Type: PU round belt
วัสดุ: PU พื้นผิว: ขรุขระ
อัตราการยืดกล้ามเนื้อ: 1.5-3%
แสงสูง:

สายพานปูรอบ

,

สายพานปูอัด

,

สายพานยูรีเทนกลมสีเขียว



Good Weatherability Polyurethane Belting Diameter 3mm - 20mm


(1) Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 degree - 80 degree
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)  Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2mm 0.79 20 1.5-3% 0.3 0.7 90 A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85 A  200
15mm 4.72 120 1.5-3% 17.7 39.0 85 A  30
18mm 5.71 145 1.5-3% 25.4 56.0 85 A 30
20mm 6.30 160 1.5-3% 31.3 69.0 85 A 30



Color: Orange, Red, Dark Green, Ivory, Natural  .

  • Shore Hardness:  Round belt - 87°A ± 2 .
  • Rough surface: Normal Rough / More Rough  .
  • Steel, Glass & Aramid Reinforcement on request.
  • Easily jointed with BCTech's Welding Kits
  • Features:
  • High tensile and tear strength
  • High abrasion resistance
  • Resistant to oil, grease, dust, moisture & most chemicals
  • Temperature Range: -35 ~ 85 Degrees

Products introduction:

Urethane round belts are elastomeric belts for power transmission application.

Having most metric sizes (2mm to 20mm) and standard O-ring sizes.

Polyether and Polyurethane round belts have best resilience of any elastic material.

Polyester product has good wear resistance, its wear resistance is 3.5 times of common

plastic and rubber.

Service commitment:



“ Quality for keeping going ,Credit to win the world”



Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 0Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 1

Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 2Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 3
