สายพานโพลียูรีเทนทรงกลมที่ใช้กันอย่างแพร่หลายในสิ่งทอ, พื้นผิวหยาบ

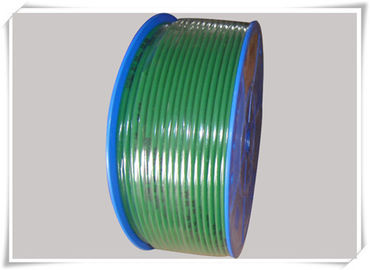

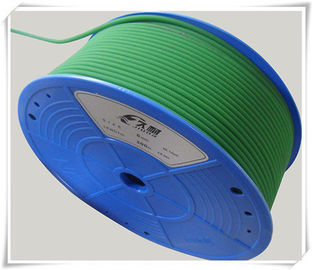

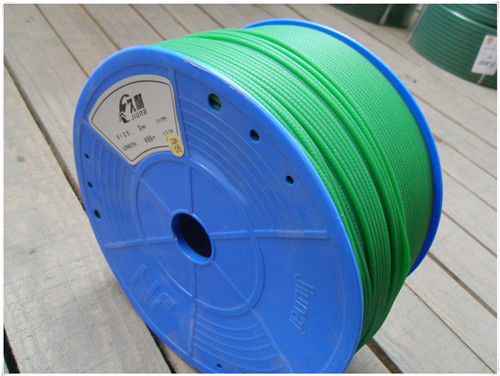

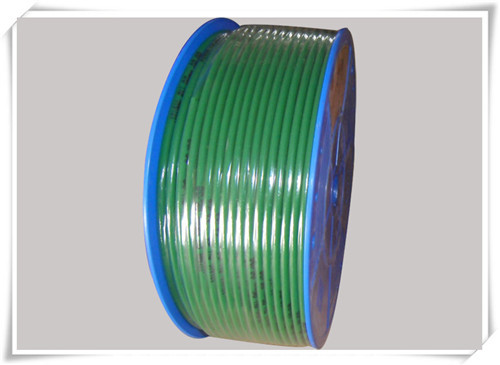

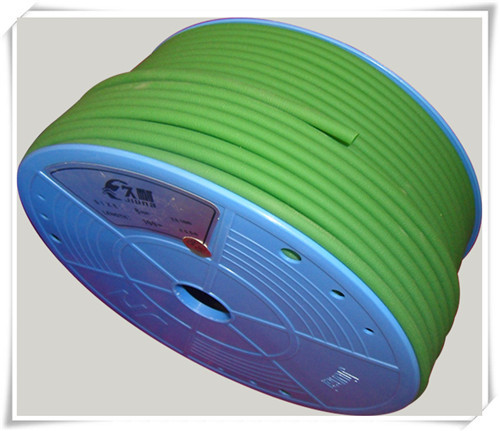

Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough
Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough

ภาพใหญ่ :  สายพานโพลียูรีเทนทรงกลมที่ใช้กันอย่างแพร่หลายในสิ่งทอ, พื้นผิวหยาบ

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 2mm-20mm
การชำระเงิน:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
รายละเอียดสินค้า
ความแข็ง: 85A-90A สี: เขียว
อัตราการยืดตัว: 1.5-3% อัตราแรงดึง: 0.7 lbs-69lbs
วัสดุ: PU ระยะเวลา: 400 ม./ม้วน 300 ม./ม้วน 200 ม./ม้วน 100 ม./ม้วน 30 ม./ม้วน
HS Code: 3926909090 กำลังการผลิต: อุปทานระยะยาว
แสงสูง:

สายพานปูรอบ

,

สายพานกลมสีเขียว

,

สายพานขับยูรีเทนกลมหยาบ

Driving Polyurethane Round Belt Widely used in textile , surface rough



Detailed Product Description

Industrial 12mm Polyurethane Round Belt Orange or Green for Packing Machine

Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to20mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
PU Round belt with reinforcement

polyurethane Round Belts Feature:

1.With excellent bend resistant

2.abrasion/wear resistant

3.easily connected

4.it's not easy to be broken at low temperature

5.fuel and oil resistant

6.anti static

polyurethane round belt Application :

1.Widely used in textile

2. printing and packing machine

3. food & beverage processing

4. wood processing

 5.paper processing

 6.electronic

 7.post service

 8.tobacco transmission line

 9.Wall floor tile conveying industrial line

10.Ceramic industry line or polishing line

Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2mm 0.79 20 1.5-3% 0.3 0.7 90 A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85 A  200
15mm 4.72 120 1.5-3% 17.7 39.0 85 A  30
18mm 5.71 145 1.5-3% 25.4 56.0 85 A  30
20mm 6.30 160 1.5-3% 31.3 69.0 85 A  30



Service commitment:

“Quality for keeping going ,Credit to win the world”
