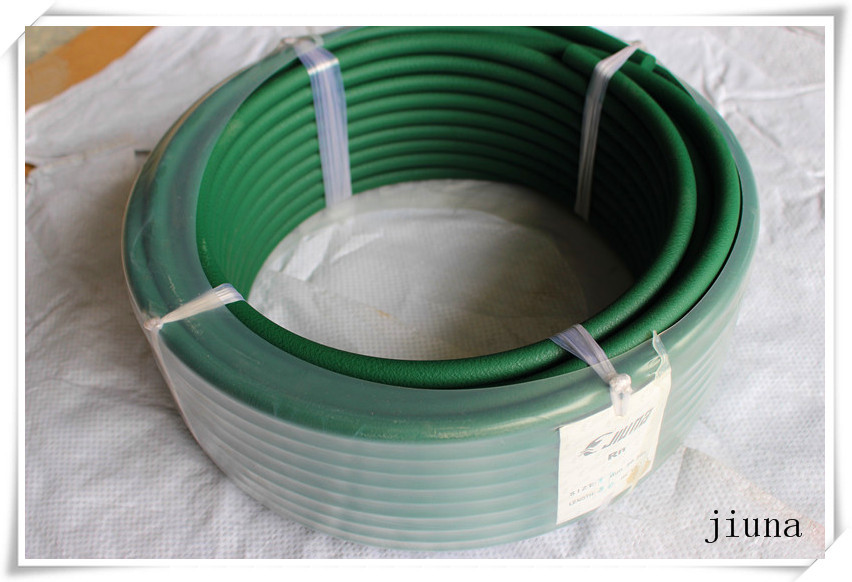

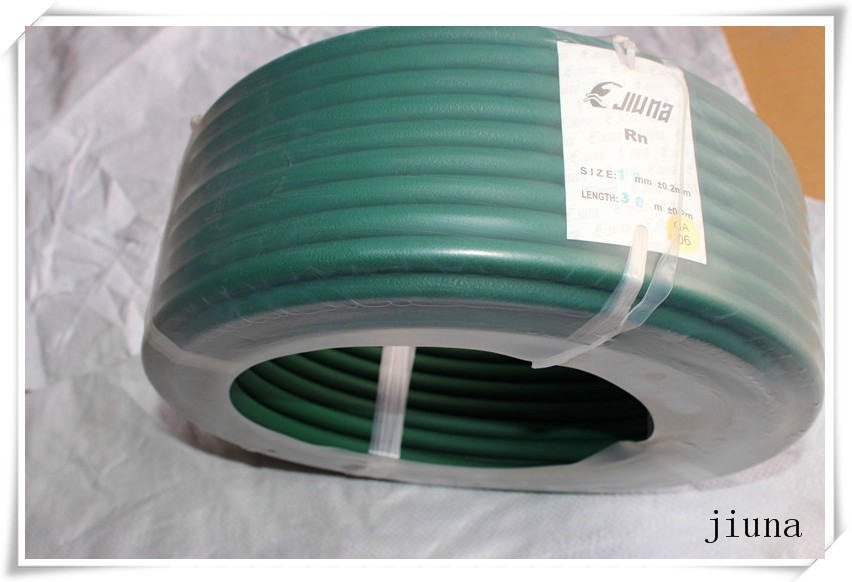

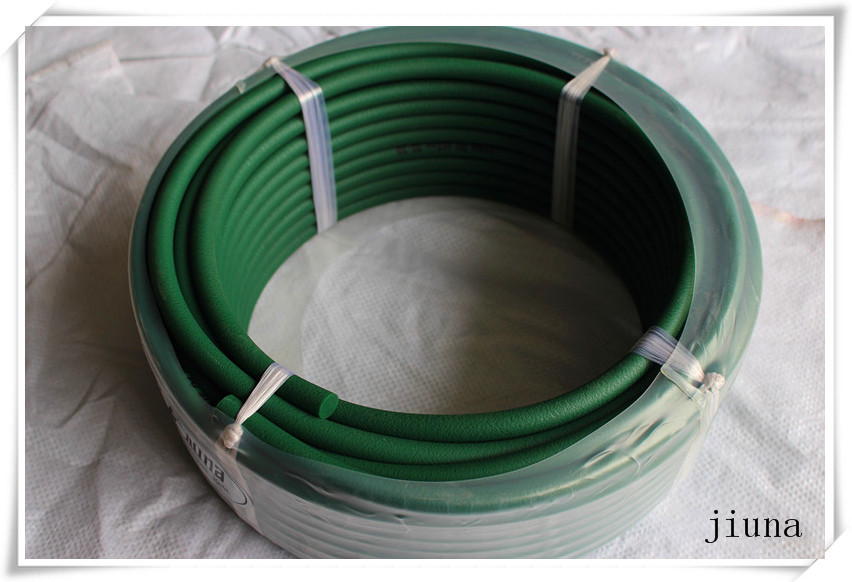

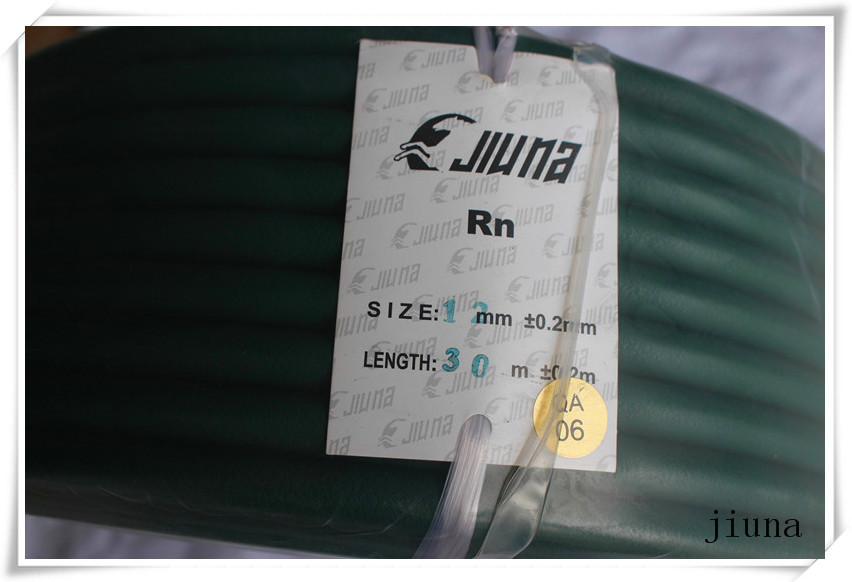

Green Urethane Polyurethane Round Belt For Textile , 30m / roll

Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll Green Urethane Polyurethane Round Belt For Textile , 30m / roll Green Urethane Polyurethane Round Belt For Textile , 30m / roll Green Urethane Polyurethane Round Belt For Textile , 30m / roll

ภาพใหญ่ :  Green Urethane Polyurethane Round Belt For Textile , 30m / roll

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: Jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 2mm~20mm
การชำระเงิน:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 96.000 meters per Month
รายละเอียดสินค้า
ความแข็ง: 85 ฝั่ง A สี: เขียวเข้ม
วัสดุ: PU ระยะเวลา: 30ม./ม้วน
ยืดเส้นยืดสาย: 1.5-3% พิมพ์: PU เข็มขัดกลม
แสงสูง:

สายพานปูรอบ สายพานกลมสีเขียว สายพานโพลียูรีเทนกลม 30ม. / ม้วน

,

green round belt

,

Polyurethane Round Belt 30m / roll

Green Urethane Polyurethane Round Belt For Textile , 30m / roll



 Polyurethane Urethane Round Belt For Textile

Items No. φ

least radius of gyration

stretch rate

Maximum tensile rate

Hardness

length of rolled

DIA

(mm)

In

mm

Stretching rate

Kg

Lbs

Hardness

(A)

Roll

(m)

2mm

0.79

20

1.5-3%

0.3

0.7

90

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

85

200

5mm

1.57

40

1.5-3%

2.0

4.3

85

100

6mm

1.97

50

1.5-3%

3.2

7.0

85

100

7mm

2.17

55

1.5-3%

4.1

9.0

85

100

8mm

2.56

65

1.5-3%

5.0

11.0

85

100

9mm

2.95

75

1.5-3%

6.8

15.0

85

50

10mm

2.95

75

1.5-3%

7.7

17.0

85

50

12mm

3.94

100

1.5-3%

12.2

27.0

85

30

15mm

4.72

120

1.5-3%

17.7

39.0

85

30

18mm

5.71

145

1.5-3%

25.4

56.0

85

30

20mm

6.30

160

1.5-3%

31.3

69.0

85

30

These PU Round Belts also feature high resistance to wear & tear that enables them to be used for more and more applications by wide range of industries.

Features:
* These can be easily welded in situations using simple equipment and there is no need to dismantle
* Their flexibility enables successful repairs to be carried out immediately & avoids stopping production
* Stocks are reduced & simplified as only one roll is required for each cross-section
* These can be instantly adapted to all problems by lengthening, shortening as well as modifying as required
* As they can be easily welded, it is often possible to repair drive round, II V II or flat belts that have been damaged
* All off-cuts are useable
* These provide great freedom in designing conveyors & selecting spacing
* The various coefficients of friction allow wide choice to suit problems to be solved as well as provide suitable carrying characteristics for products being conveyed
