| แสงสูง: | Reinforced cord belt,industrial timing belt |
||
|---|---|---|---|

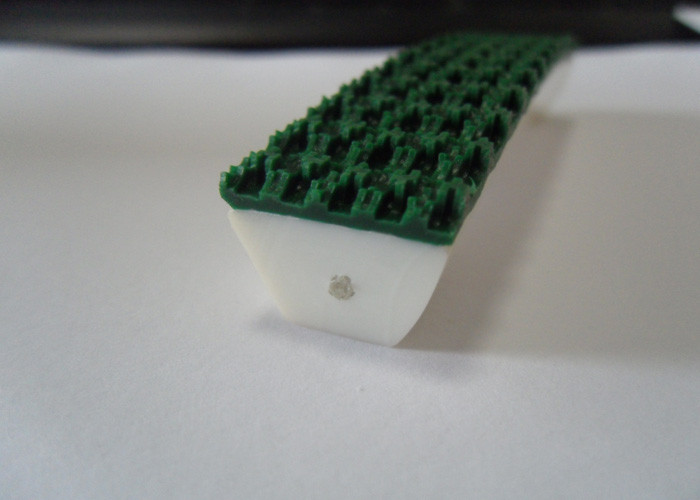

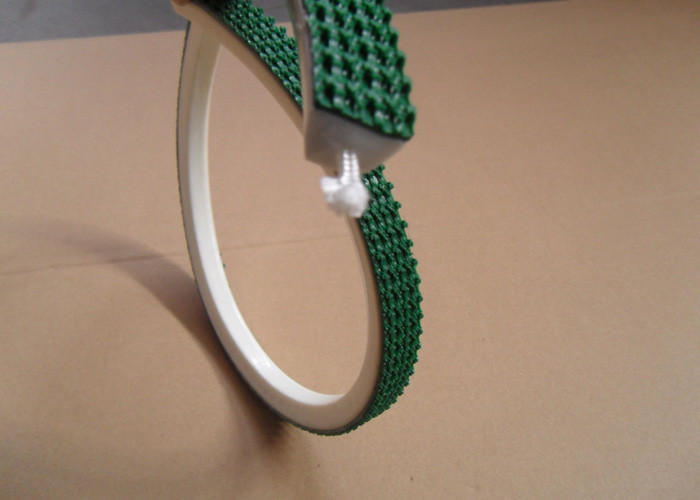

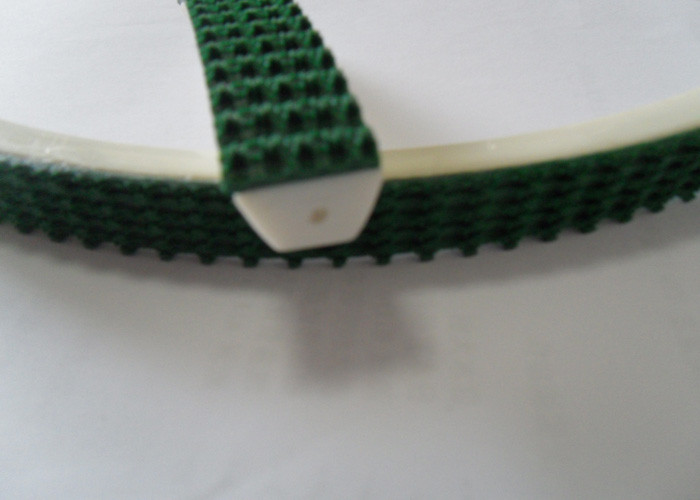

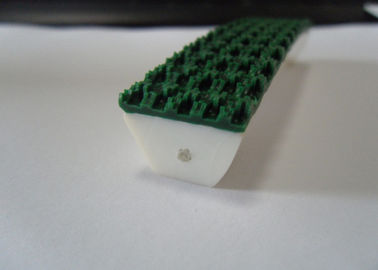

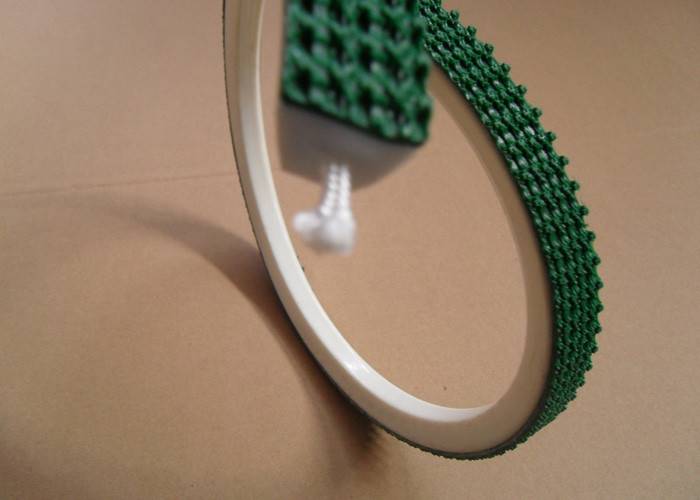

Green Nylon Kevlar Belts , Reinforced Cord Super Grip Belt
Reinforced Super grip Belt Feature :
· Profile shape: Vee
· Profile size: A/13, B/17, C/22
· Reinforcement: With Reinforced nylon cord
· Color: Green, Red
· Compliancy: RoHS
· Durometer: 80A, 90A
· Material: Polyurethane, PVC Top Surface
· Special Feature: PVC Grip Top Surface
· Package Length: 30meter /roll
· Easily welded endless vee belt
super grip Belt Application :
· Widely used in conveying slippery environments,
· Up steep inclines conveying industrial .
|
Specification |
X(mm) |
H(mm) |
Z(mm) |
M/rolls |
Reinforced |
With Green PVC |
|---|---|---|---|---|---|---|
|
A |
13 |
8 |
3.5 |
30 |
· |
· |
|
B |
17 |
11 |
3.5 |
30 |
· |
· |
|
C |
22 |
14 |
3.5 |
30 |
· |
· |
|
D |
32 |
19 |
3.5 |
30 |
· |
· |
|
M |
8 |
4 |
|
50 |
|
|
|
Z |
10 |
5 |
3.5 |
50 |
· |
· |
Products introductions :
Super grip belt are ideally suited for applications where conveying in slippery environments,
up steep inclines, or moving easily damaged products is more important than abrasion
resistance. Conveying applications that require the elasticity of an unreinforced V-belt
combined with a super grip surface. PU Vee Super Grip with top PVC surface is soft and
tacky enough that it wont damage your precious cargo while giving you the grip that you need.
The ultra-high grip material is produced with an extremely compliant pattern .
