| Length: | 100 meter /rolls | Hardness: | 85 shore A ~ 90 shore A |
|---|---|---|---|
| color: | Green color | surface: | rough |
| material: | PU | Elongation:: | 550%-650% |
| Surface:: | Rough,Smooth | ||
| แสงสูง: | pu extruded belt,green round belt |
||

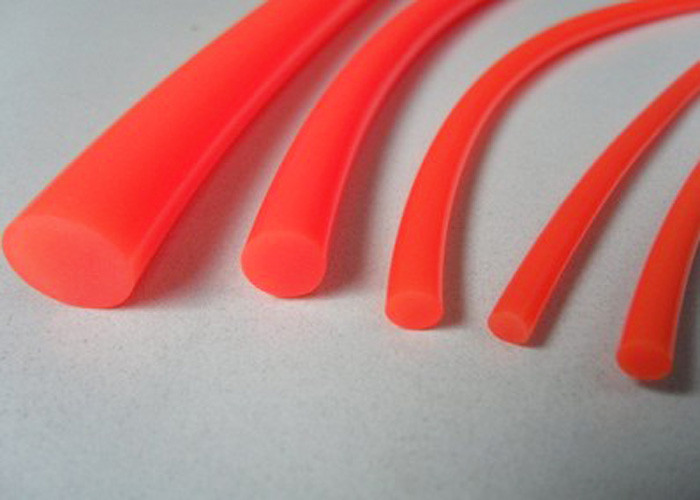

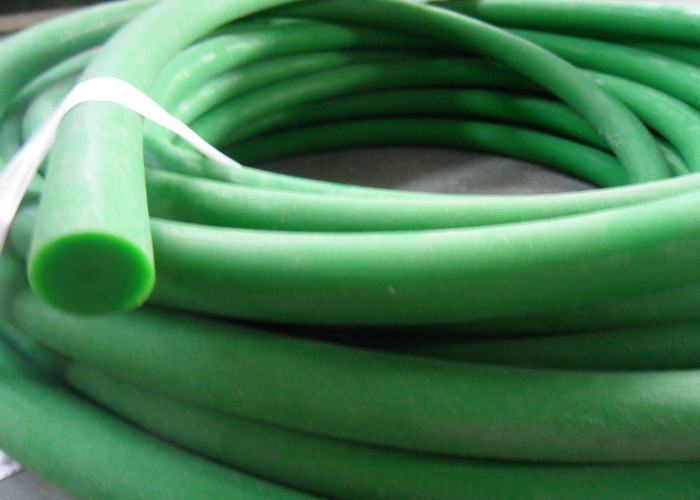

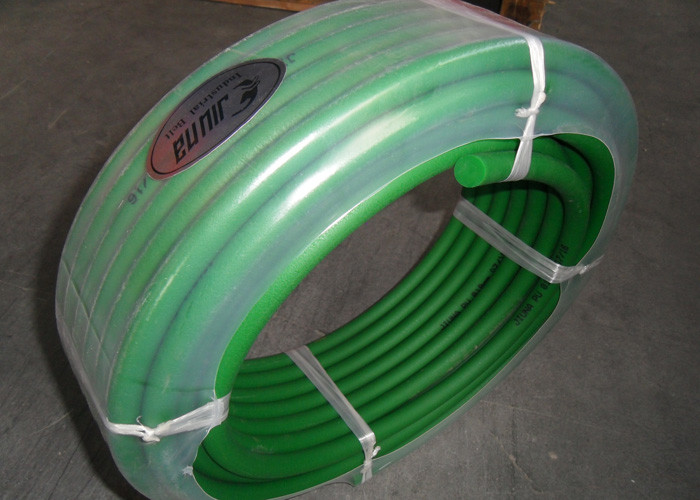

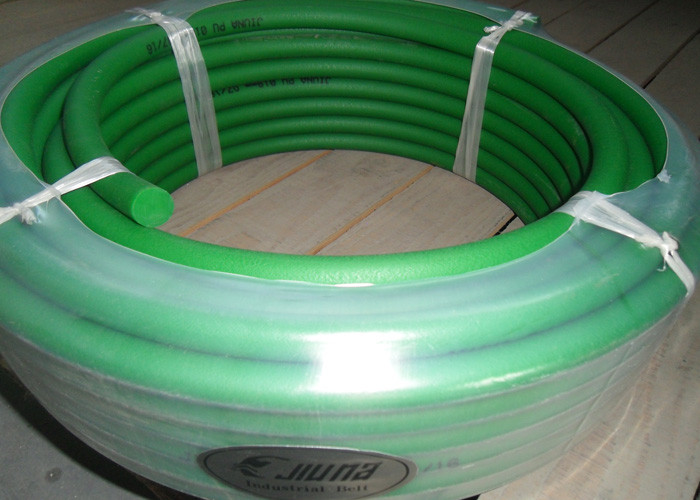

Anti static Polyurethane Round Belt / PU smooth round belt wood processing
|
Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
||
|
DIA (mm) |
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness (A) |
Roll (m) |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
85 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
85 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
85 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
85 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
85 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
85 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
85 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
85 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
85 |
30 |
Polyurethane belting of introduction:
We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers,kelver,steel cord. Also can joint belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , including clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .
Wuxi jiunai polyurethane products co.,LTD is located in wuxi city shitang bay mountain luoshe town industrial park, near to 312 national road, trafifc is very convenient . Company has the international leading level of polyurethane products production line, the introduction of international advanced technology and testing, testing equipment. In the production scale ,production process, techncal strength in the same industry leading position . Ls a research and development, the production of polyurethane series products of leading domestic, top professional manufacturers,with strong teachnology research and development and production capacity.
Service commitment:
“Quality for keeping going ,Credit to win the world”
