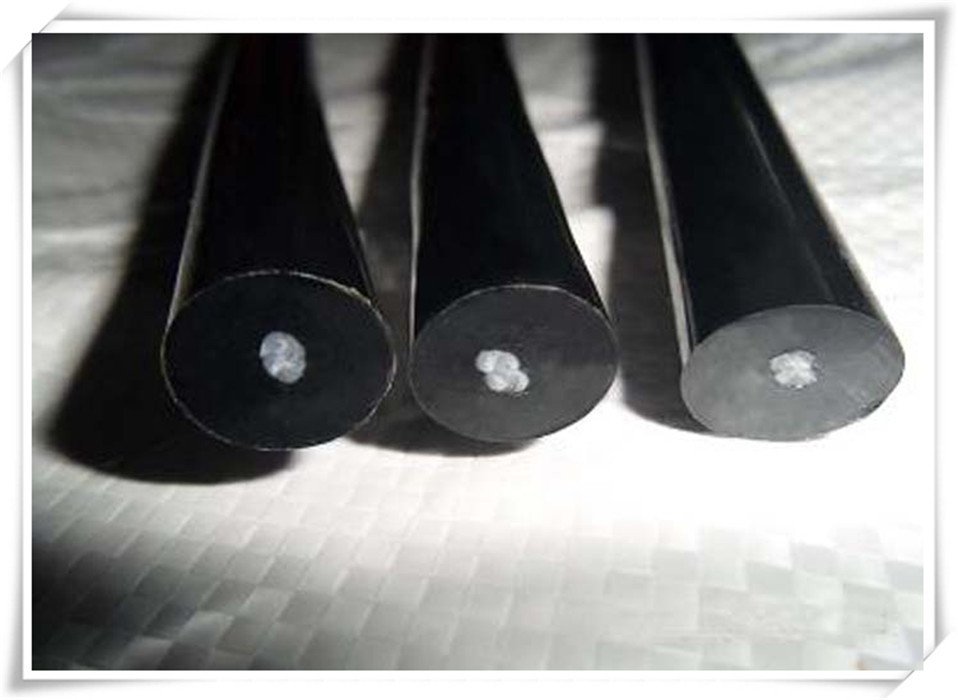

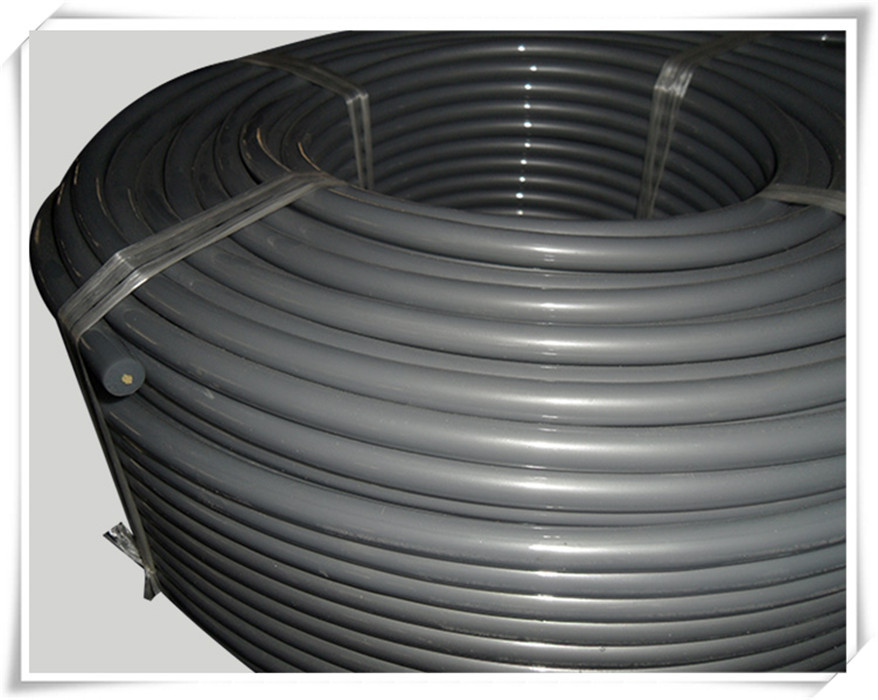

Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt

Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt
Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt

ภาพใหญ่ :  Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: Jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 5mm~20mm
การชำระเงิน:
Minimum Order Quantity: 1000 Meter
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 96.000 meters per Month
Export port: shanghai
Factory: Wuxi City
รายละเอียดสินค้า
Hardness: 85 shore A ~90 shore A Main function: Drive,transmission,
material: PU Length: 100 meter /rolls 50m/ roll 30m / roll
color: any color Tensile Strength: 55N/mm2
แสงสูง:

Reinforced cord belt

,

industrial timing belt

Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt



Nylon cord belt Feature :


1.        Available in round or V-sections

2.        Low Stretch,anti-abrasion

3.        Can be cogged for increased flexibility

4.        Easily made endless with a Drive welding Kit


polyurethane belt Application :


1      The elevator slide shaft

2.     Medium- to heavy-duty applications

3.     Conveying or diverging applications,  product sizing

4.     For conveying wood, laminate, roof and ceiling tile


Item φ

least radius of gyration


stretch rate

Maximum tensile rate


Hardness

length of rolled

DIA
(mm)

In

mm

Stretching rate

Kg

Lbs

Hardness
(A)

Roll
(m)

5mm

1.57

40

1.5-3%

2.0

4.3

85

100

6mm

1.97

50

1.5-3%

3.2

7.0

85

100

7mm

2.17

55

1.5-3%

4.1

9.0

85

100

8mm

2.56

65

1.5-3%

5.0

11.0

85

100

9mm

2.95

75

1.5-3%

6.8

15.0

85

50

10mm

2.95

75

1.5-3%

7.7

17.0

85

50

12mm

3.94

100

1.5-3%

12.2

27.0

85

30

15mm

4.72

120

1.5-3%

17.7

39.0

85

30

18mm

5.71

145

1.5-3%

25.4

56.0

85

30

20mm

6.30

160

1.5-3%

31.3

69.0

85

30


Service commitment:
“Quality for keeping going ,Credit to win the world” Textile Polyurethane Flat Belt , Reinforced Cord Transmission belt 0
