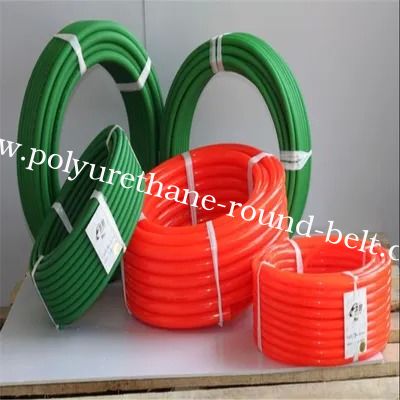

Oil-Resistant Polyurethane Round Belt with Shore A 90 Hardness and Diameter 2-20mm for Drive Transmission
รายละเอียดสินค้า
| รุ่นหมายเลข | JN20169 | พิมพ์ | สายพาน PU |
|---|---|---|---|
| วัสดุ | PU | วัสดุด้านใน | PU |
| พื้นผิว | เรียบหรือยังหยาบ | แรงดึง | 55N/ตร.มม |
| เส้นผ่าศูนย์กลาง | 2 ~ 20 มม. | ความแข็ง | 85 A ~ 90 A |
| อัตราการยืดตัว | 1.5-3% | อัตราแรงดึงสูงสุด | กิโลกรัม (แตกต่างกันไปตามเส้นผ่านศูนย์กลาง) |
| รัศมีน้อยที่สุด | 20 ~ 160 มม. | ความยาวม้วน | 30 ~ 400 ม. |
| กำลังฉีกขาด | สูง | ชุดบีบอัด | ต่ำ |
| ความต้านทานต่อแรงกระแทก | สูง | ||
| เน้น | Oil-Resistant Polyurethane Round Belt,Shore A 90 Polyurethane V Belt,Diameter 2-20mm PU Round Belt |
||
รายละเอียดสินค้า
Abrasion-Resistant Polyurethane Round Belt
Our premium polyurethane round belts are designed for transmission applications in industrial machinery and product conveyance systems. These belts feature poly cord reinforcement and are available with either smooth or rough surfaces to suit various operational requirements.
Product Features
- Exceptional abrasion resistance for extended service life
- High tensile and tear strength for demanding applications
- Resistant to oils, fuels, and oxygen exposure
- Excellent weatherability and impact resistance
- Minimal compression set for consistent performance
- Available in multiple diameters from 2mm to 20mm
- Compatible with various connection methods including hot press welding
Technical Specifications
| Diameter | Min. Bend Radius | Elongation | Max. Tensile | Hardness | Roll Length |
|---|---|---|---|---|---|
| 2mm (0.79") | 20mm | 1.5-3% | 0.3kg (0.7lbs) | 95A | 400m |
| 2.5mm (0.87") | 22mm | 1.5-3% | 0.4kg (0.9lbs) | 95A | 400m |
| 3mm (0.98") | 25mm | 1.5-3% | 0.7kg (1.6lbs) | 90A | 400m |
| 3.5mm (1.18") | 30mm | 1.5-3% | 0.95kg (2.1lbs) | 90A | 400m |
| 4mm (1.38") | 35mm | 1.5-3% | 1.2kg (2.7lbs) | 90A | 200m |
| 5mm (1.57") | 40mm | 1.5-3% | 2kg (4.3lbs) | 90A | 100m |
| 6mm (1.97") | 50mm | 1.5-3% | 3.2kg (7lbs) | 90A | 100m |
| 7mm (2.17") | 55mm | 1.5-3% | 4.1kg (9lbs) | 90A | 100m |
| 8mm (2.56") | 65mm | 1.5-3% | 5kg (11lbs) | 90A | 100m |
| 9mm (2.95") | 75mm | 1.5-3% | 6.8kg (15lbs) | 90A | 50m |
| 10mm (3.94") | 100mm | 1.5-3% | 7.7kg (17lbs) | 90A | 50m |
| 12mm (3.94") | 100mm | 1.5-3% | 12.2kg (27lbs) | 90A | 30m |
| 15mm (4.72") | 120mm | 1.5-3% | 17.7kg (39lbs) | 90A | 30m |
| 18mm (5.71") | 145mm | 1.5-3% | 25.4kg (56lbs) | 90A | 30m |
| 20mm (6.3") | 160mm | 1.5-3% | 31.3kg (69lbs) | 90A | 30m |
Common Applications
Newspaper conveying
Packaging machinery
Ceramic processing
Tile production
Woodworking equipment
Textile machinery
Paper industry
Food processing
Grading machines
