| color: | green | material: | PU |
|---|---|---|---|
| longth: | 300m/roll 200m/roll 100m/roll 30m/roll | hardness: | 85A-90A |
| tensile rate: | 0.3kg-31.3kg | Tensile Strength: | 55N/mm2 |
| แสงสูง: | pu round belt,pu extruded belt |
||

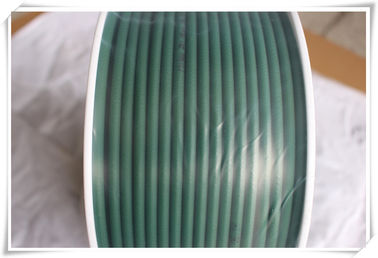

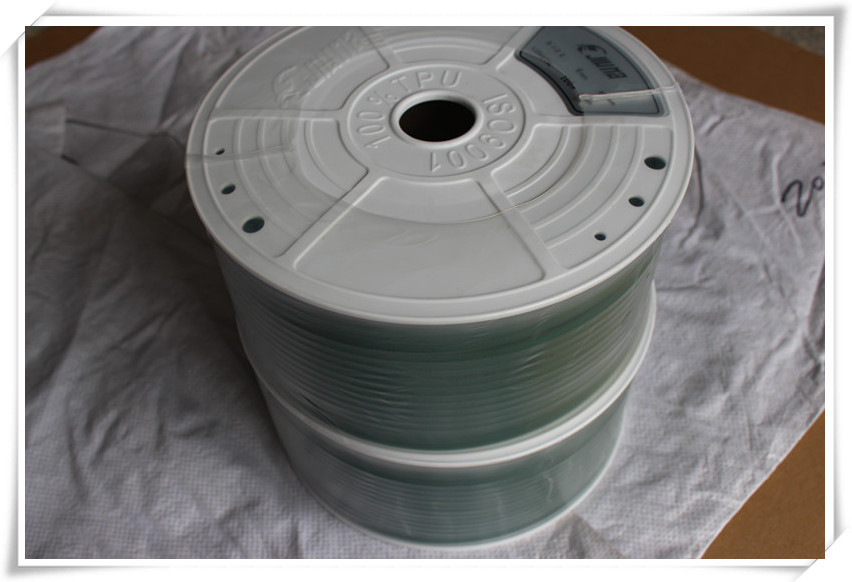

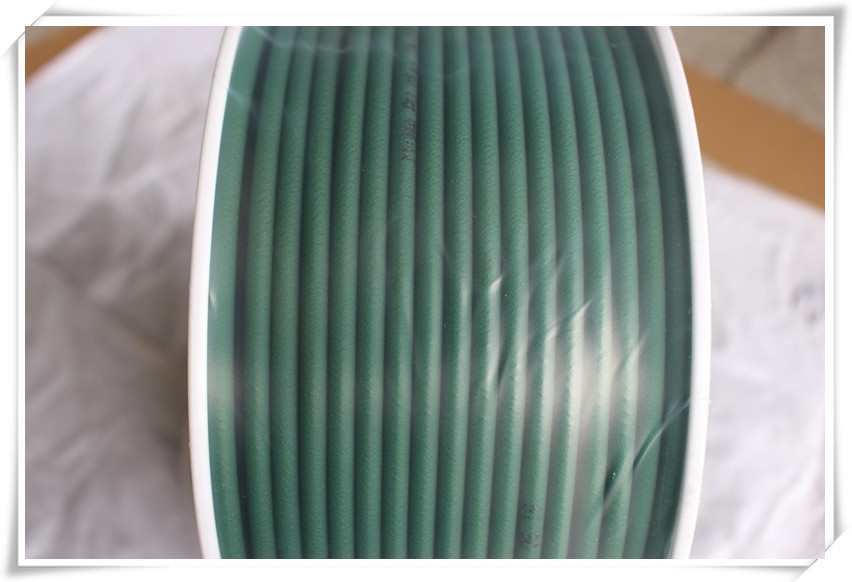

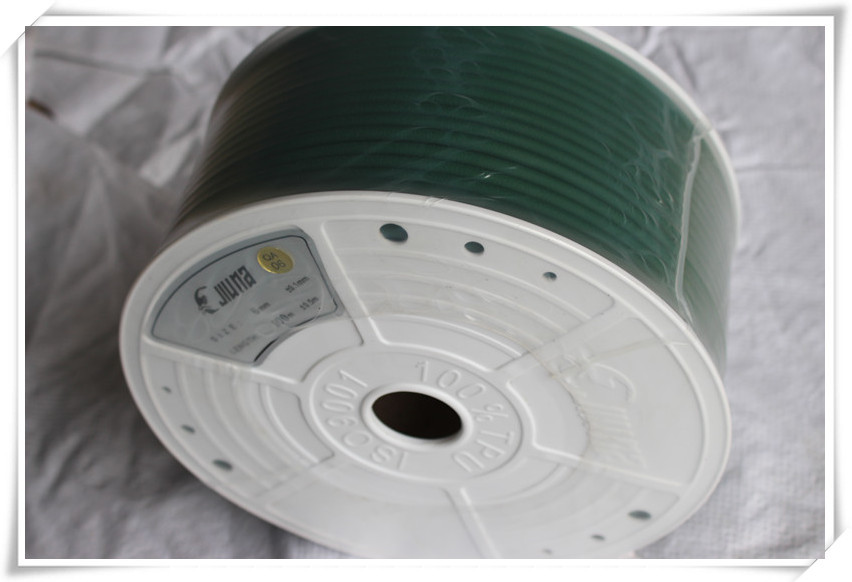

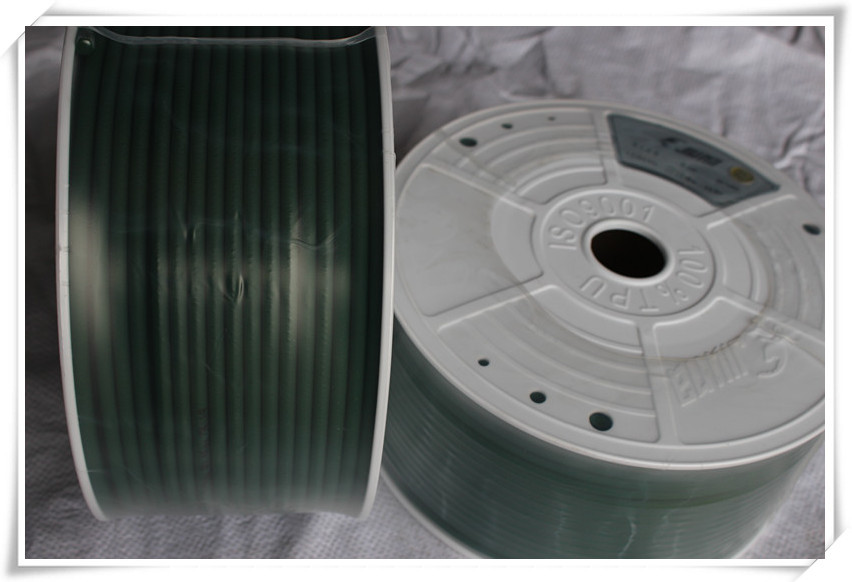

Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A
Detailed Product Description:
PU Cord Belt Application :
1. Wall floor tile conveying industrial line
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
7. post service
8. tobacco transmission line
PU Cord Properties :
-Excellent abrasion resistance.
-Good resistance to fuel , oils and oxygen.
-Contains no plasticizer.
-Wide application temperature from -30℃~+80℃
Transmission PU Rough Round Belt ; Polyurethane Round Belt, PU Smooth Round Belt,
PU Rough Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.
Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics
and other industries, especially in the ceramic industry, widely used in the facilities line
the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used
widely.
PU Round belt with reinforcement
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
|
DIA (mm) |
In | mm | Stretching rate | Kg | Lbs |
Hardness (A) |
Roll (m) |
| 2 | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 90 | 400 |
| 3 | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 4 | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5 | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6 | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7 | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8 | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9 | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10 | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12 | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15 | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18 | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20 | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 |
30 |
