Dark green rough power transmission belts For Agricultural machine

ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

สนทนาออนไลน์ตอนนี้ฉัน

Dark green rough power transmission belts For Agricultural machine

Dark green rough power transmission belts For Agricultural machine
Dark green rough power transmission belts For Agricultural machine Dark green rough power transmission belts For Agricultural machine Dark green rough power transmission belts For Agricultural machine Dark green rough power transmission belts For Agricultural machine

ภาพใหญ่ :  Dark green rough power transmission belts For Agricultural machine

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: jiuna
ได้รับการรับรอง: ROHS
Model Number: Diameter 2mm~20mm
การชำระเงิน:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
รายละเอียดสินค้า
color: green material: PU
longth: 300m/roll 200m/roll 100m/roll 30m/roll hardness: 85A-90A
tensile rate: 0.3kg-31.3kg Tensile Strength: 55N/mm2
แสงสูง:

pu round belt

,

green round belt

Dark green rough power transmission belts For Agricultural machine

Detailed Product Description:

Features:

1) made of PU material, easy to be joint at high heat.

2) Available to add nylon cord or steel cord

3) Tolerant temperturer: -35℃--80℃

4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble, they are welcome in the polishing& glazing .

5) Round belt:

 a:  diameter: 2mm--30mm

b:  surface: vivid color with glossy surface; neat granule spread fairly for rough surface type.

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.





Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2 0.79  20 1.5-3% 0.3 0.7 90 400
3 0.98 25 1.5-3% 0.7 1.6 90 400
4 1.38 35 1.5-3% 1.2 2.7 85 200
5 1.57 40 1.5-3% 2.0 4.3 85 100
6 1.97 50 1.5-3% 3.2 7.0 85 100
7 2.17 55 1.5-3% 4.1 9.0 85 100
8 2.56 65 1.5-3% 5.0 11.0 85 100
9 2.95 75 1.5-3% 6.8 15.0 85 50
10 2.95 75 1.5-3% 7.7 17.0 85 50
12 3.94 100 1.5-3% 12.2 27.0 85 30
15 4.72 120 1.5-3% 17.7 39.0 85 30
18 5.71 145 1.5-3% 25.4 56.0 85 30
20 6.30 160 1.5-3% 31.3 69.0 85

30

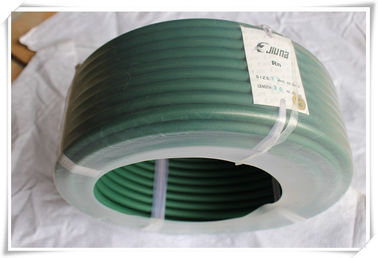

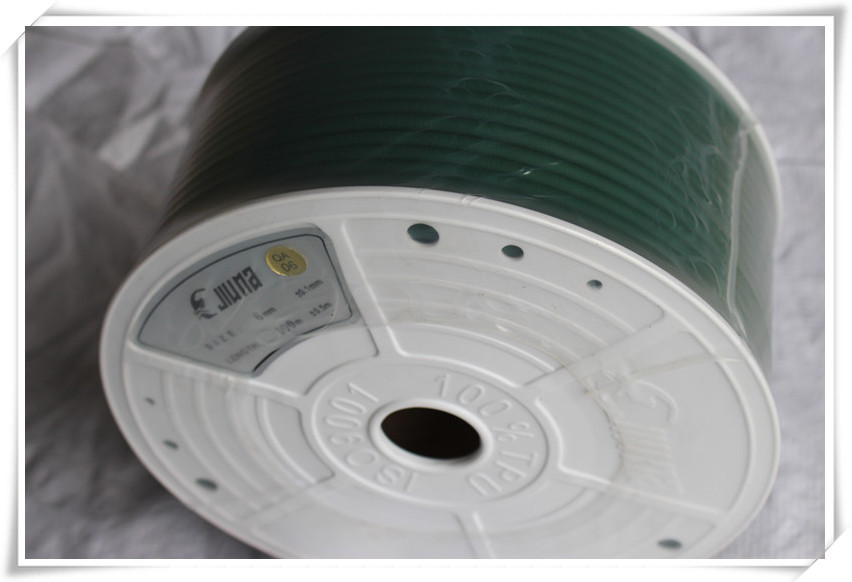

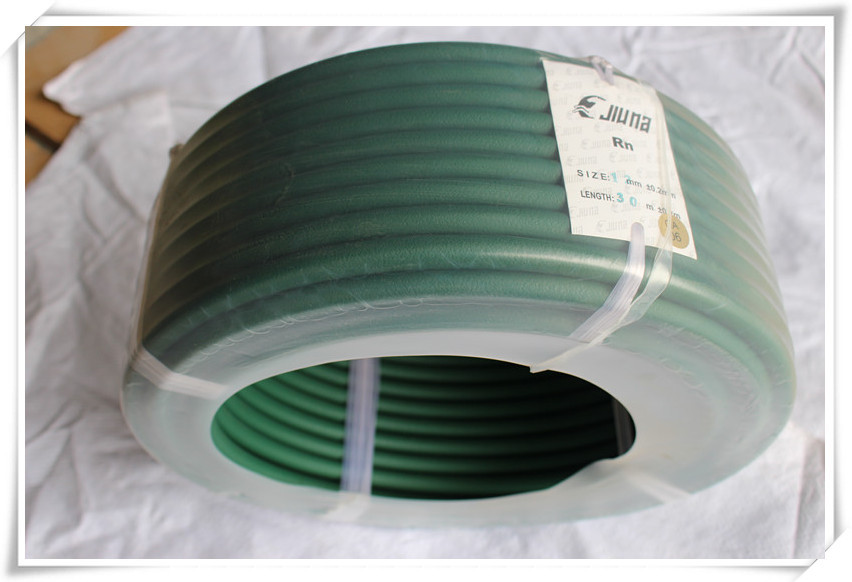

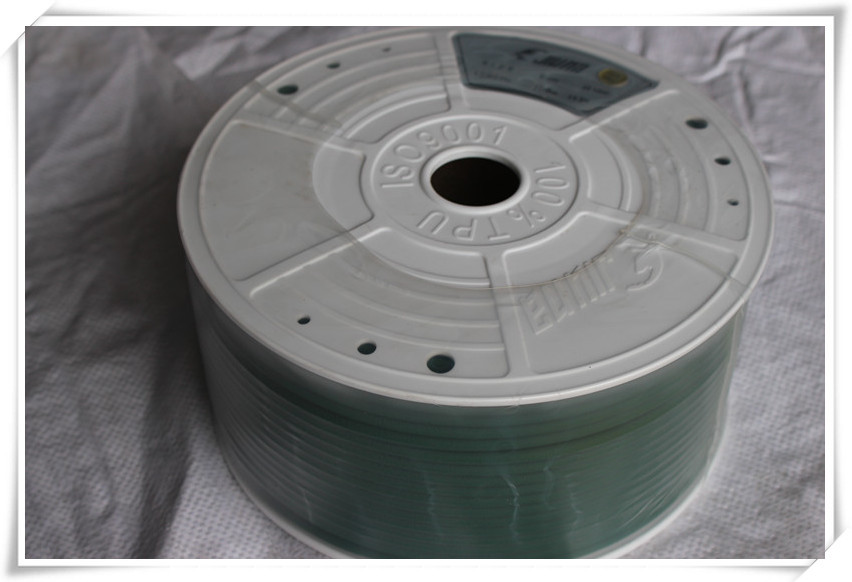

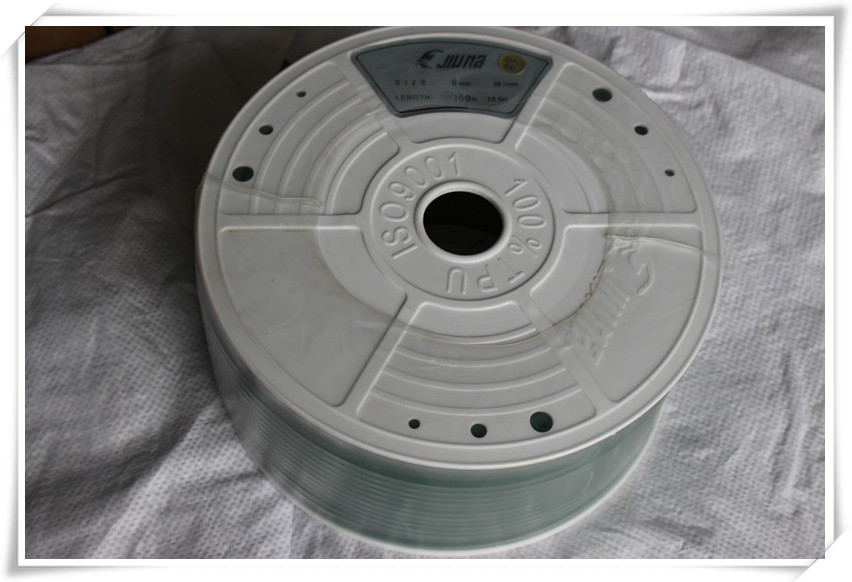

Dark green rough power transmission belts For Agricultural machine 0Dark green rough power transmission belts For Agricultural machine 1Dark green rough power transmission belts For Agricultural machine 2
