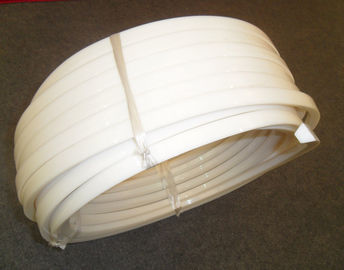

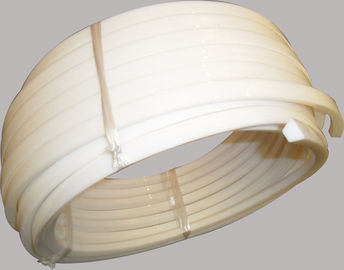

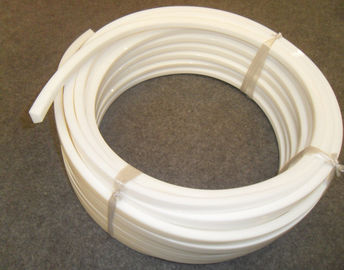

Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type

Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type
Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type

ภาพใหญ่ :  Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: Jiuna
ได้รับการรับรอง: ROHS
Model Number: A-13 / B-17 / C-22
Hardness: 90 shore A
Length: 30 meter /rolls
การชำระเงิน:
Minimum Order Quantity: 600 Meter
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Export port: shanghai
Factory: Wuxi City
รายละเอียดสินค้า
แสงสูง:

green round belt

,

pu round belt

Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type



PU V-rope characteristics  :

1.excellent elasticity and damping characteristics

2.High tensile strength

3.With smooth surface v-belts

4.Color :red ,white

5.Hardness 90 shore A

6.Available with or without reinforced cord .

7.Replacement for conventional rubber V-belts , but more wear-resisting and can welding.



Application industries for v-rope belt :

1.ceramic ,floor tile and Brick industry

2.Transport  system and logistic centers

3.Conveying machine with lock out

4.Tile glazing machine

5.Canning transport system

6.Accumulating roller conveyor

7.Curve system for transportation of boxes .





Ceramic Industrial Transmission PU V-rope Polyurethane V Belt C-22 type 0



Specification

X(mm)

H(mm)

 Hardness (Shore A)

M/rolls

Reinforced

A

13

8

    90

30

·

B

17

11

    90

30

·

C

22

14

    90

30

·

D

32

19

    90

30

·

M

8

4

    90

50



Z

10

5

    90

50

·







Products introduction

We offer a complete line of Polyester and Polyurethane V-belts for use in industrial machine transmissions and a wide variety of conveyor applications. V-belts run in single or multiple lines side by side. These belts ensure proper alignment, reduced slippage and are perfect for the transport of products up and down an incline such as boxing, packaging materials, aggregates, glass, tiles and many other products. The very elastic and flexible material PU 85 A ~90 A in red is particularly suitable for lead in conveyors and vertical shafts.



Service commitment

 “Quality for keeping going ,Credit to win the world”
