Wuxi Jiunai Polyurethane Products Co., Ltd
บ้าน ผลิตภัณฑ์สายพาน Super Grip

Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line

ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
ประเทศจีน Wuxi Jiunai Polyurethane Products Co., Ltd รับรอง
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

สนทนาออนไลน์ตอนนี้ฉัน

Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line

Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line
Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line

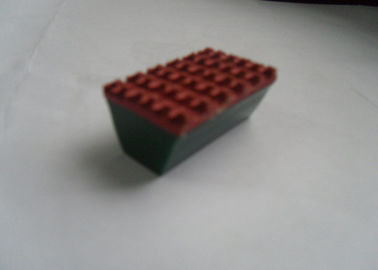

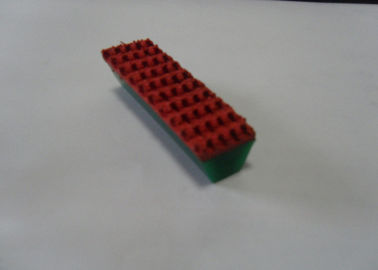

ภาพใหญ่ :  Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: Jiuna
ได้รับการรับรอง: ROHS
Model Number: A-13 ,B-17 ,C-22
Hardness: 85 shore A ~90 shore A
Length: 30 meter /roll
การชำระเงิน:
Minimum Order Quantity: 600 Meter
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Export port: shanghai
Factory: Wuxi city
รายละเอียดสินค้า
แสงสูง:

green round belt

,

pu extruded belt

Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line





Super grip Belt Application :

· Widely used in conveying slippery environments,

· Up steep inclines conveying industrial .



 Super grip Belt Feature :

· Profile shape: Vee

· Profile size: A/13, B/17, C/22

· Reinforcement: None

· Color: Green, Red

· Compliancy: RoHS

· Durometer: 80A, 90A

· Material: Polyurethane, Rubber Corrugated Top Surface

· Special Feature: PU Vee belt with Rubber Corrugated  Top Surface

· Package Length: 30meter /roll

· Easily welded endless vee belt .

                                                          Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line 0

Specification

X(mm)

H(mm)

Z(mm)

M/rolls

reinforced

arabesquitic

A

13

8

3.5

30

·

·

B

17

11

3.5

30

·

·

C

22

14

3.5

30

·

·

D

32

19

3.5

30

·

·

M

8

4



50





Z

10

5

3.5

50

·

·





 Products introduction:

Super grip belt ,Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface. Perfect for conveying in the

most abrasive environments such as moving concrete blocks, bricks, and tiles of all types.









Service commitment:





 “Quality for keeping going ,Credit to win the world”
