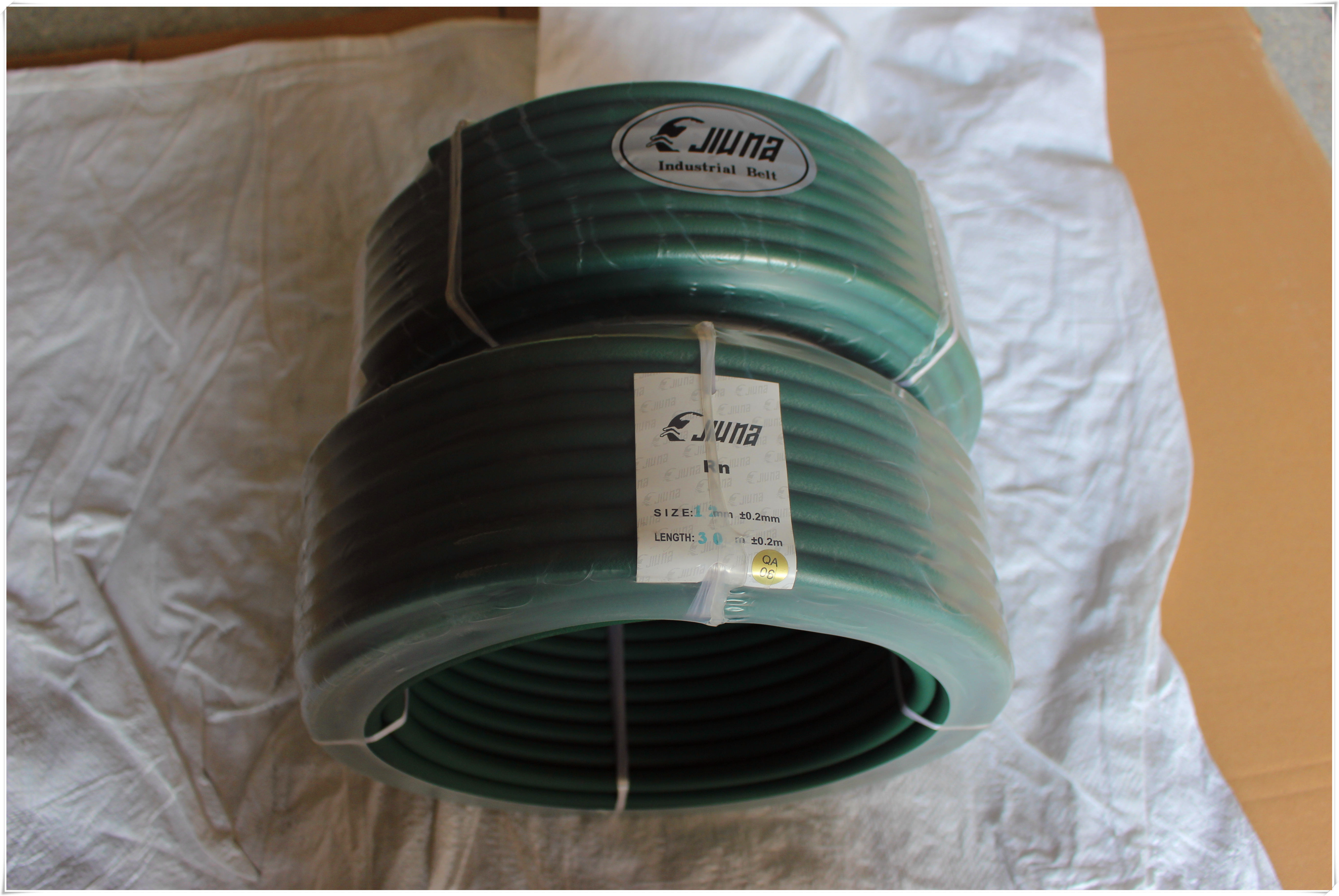

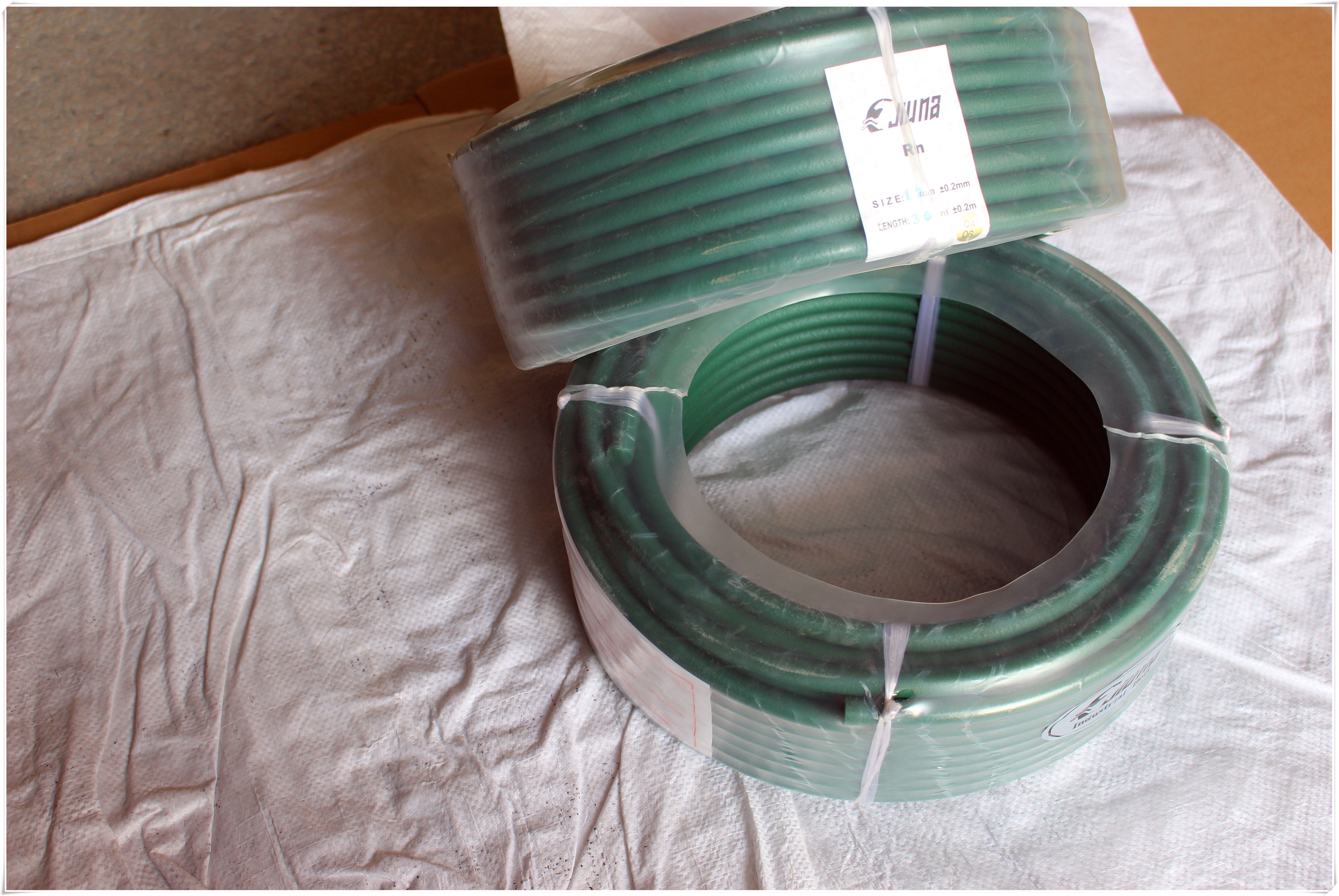

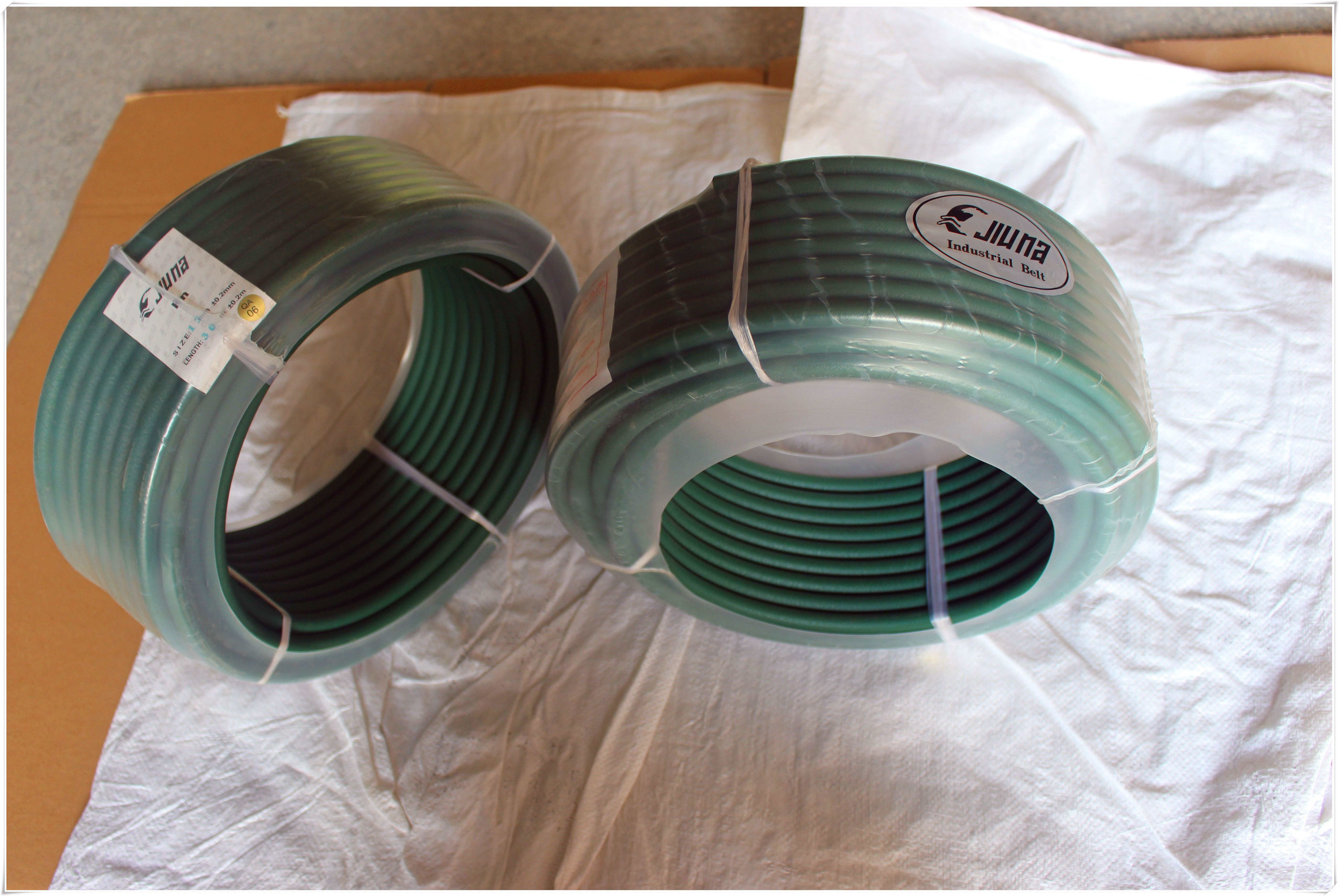

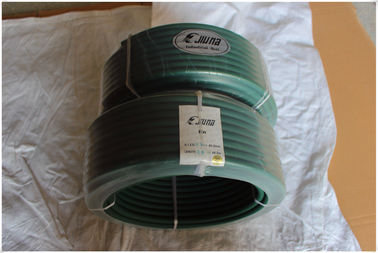

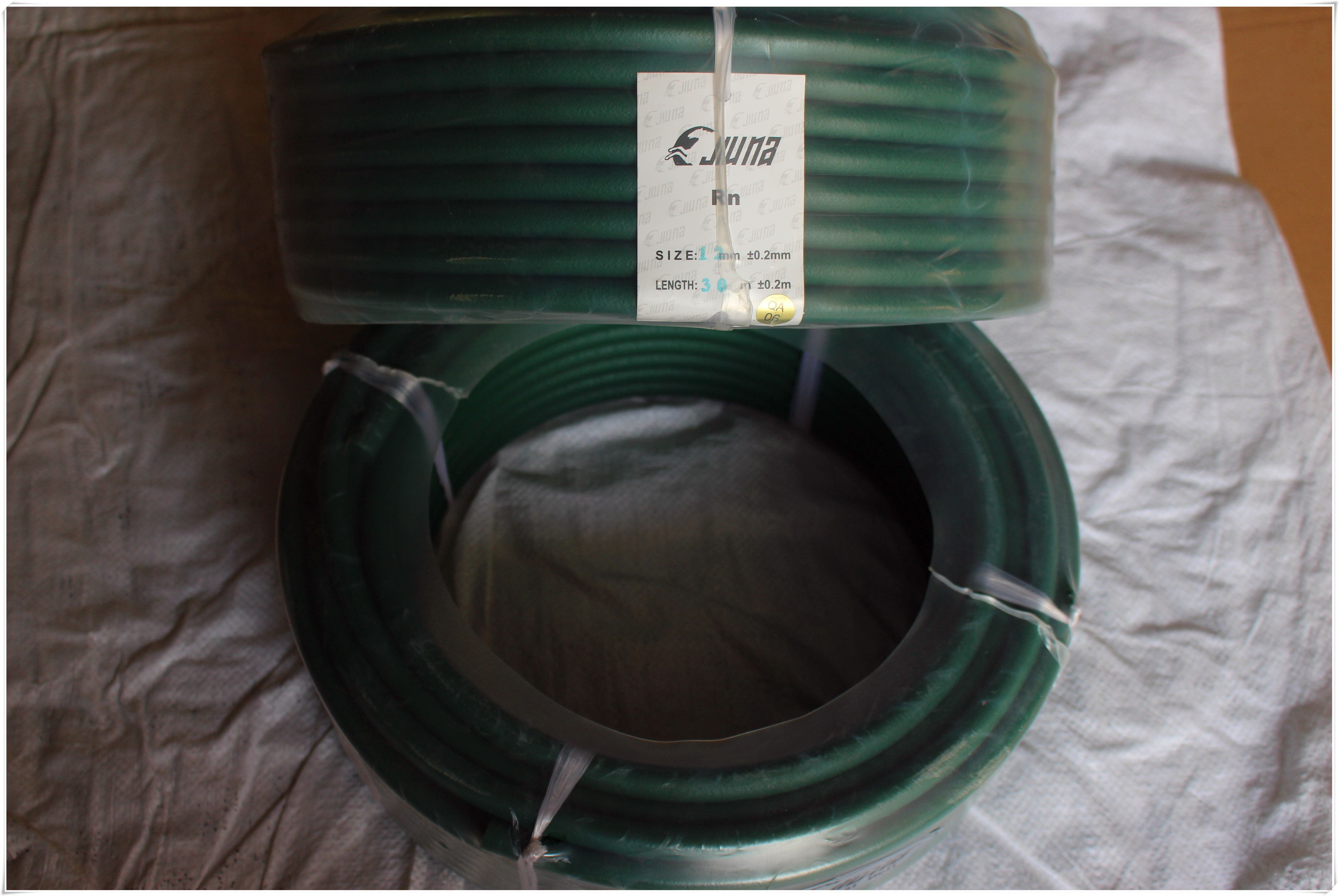

PU Round Conveyor Urethane Belts Industrial Transmission 80A
| Place of Origin | China |
|---|---|
| ชื่อแบรนด์ | Jiuna |
| ได้รับการรับรอง | ROHS |
| Model Number | Diameter 2mm~20mm |
| Minimum Order Quantity | 10rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton . |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96.000 meters per Month |
ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
Whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| ความแข็ง | 85 ฝั่ง A | สี | เขียวเข้ม |
|---|---|---|---|
| วัสดุ | PU | ระยะเวลา | 30ม./ม้วน |
| ยืดเส้นยืดสาย | 1.5-3% | พิมพ์ | PU เข็มขัดกลม |
| ฟังก์ชั่นหลัก | ไดรฟ์เกียร์ | วิธีทดสอบ | มาตรฐาน DIN |
| เน้น | สายพาน pu อัด,สายพานกลมสีเขียว,สายพานโพลียูรีเทนความแข็ง 80A |
||
รายละเอียดสินค้า
PU Round Conveyor Urethane Belts Industrial Transmission 80A
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
PU Cord Belt Application :
1. Widely used in textile
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
7. post service
8. tobacco transmission line
9. Wall floor tile conveying industrial line
10. Ceramic industry line or polishing line
PU Round Belt(smooth/rough)
(1)Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35℃ - 80℃
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.
Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and
other industries, especially in the ceramic industry, widely used in the facilities line the glaze,
polishing lines, and transmission line.
(6) Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness.
They are used widely.
|
Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
||
|
DIA (mm) |
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness (A) |
Roll (m) |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 |
400m |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400m |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 |
200m |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
85 |
100m |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
85 |
100m |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
85 |
100m |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
85 |
100m |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
85 |
50m |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
85 |
50m |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
85 |
30m |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 |
30m |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
85 |
30m |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
85 |
30m |
